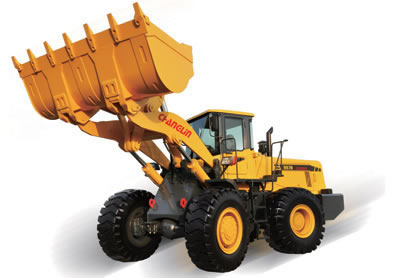

967H Wheel Loader

This product has been discontinued and removed from our shelves.

1. The 967H Wheel Loader is equipped with SHANGCHAI engine.
2. Its KD switch allows better efficiency and easy operation.
3. This front end loader employs the famous original GRAZIANO wet type axle with multi-disc limited slip differentials to deliver maximum traction under changing traction conditions.
4. It is equipped with reliable ZF transmission case and torque converter.
5. The bucket of this wheel loader features automatic leveling ability and its boom comes with position limitation.
6. The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.

Technical Specification:
Overall Dimension
1 Length (with bucket on ground) 8280(mm)
2 Width (to the outside of wheels) 2897(mm)
3 Bucket width 3048(mm)
4 Height (to the top of the cab) 3545(mm)
5 Wheel base 3300(mm)
6 Tread 2300(mm)
7 Min. ground clearance 368(mm)
Main Technical Specification
1 Rated load 6000(Kg)
2 Operating weight 18600kg
3 Rated bucket capacity 3.5(m3)
4 Max. breakout force 190KN
5 Max. driving force 180KN
6 Max. dump clearance 3028(mm)
7 Dump reach 1228(mm)
8 Dump angle at any position ≥45°
9 Digging depth(with bucket bottom horizontal) 212(mm)
10 Min. turning radius
(1) Outside of bucket 6870(mm)
(2) Outside of front wheel 6258(mm)
11 Pivot angle frame 38+
12 Oscillating angle of rear axle +12°
13 Lifting time of bucket 5.8(sec.)
14 Lowering time of bucket 3.2(sec.)
15 Dumping time 1.5(sec.)
16 Traveling speed (Km/h)
(1)1st gear (forward & reverse) 6.8
(2)2nd gear (forward & reverse) 12.2
(3)3rd gear (forward & reverse) 24.5
(4)4th gear (forward) 35
Diesel Engine
1 Model Cummins 6CTAA8.3-C240 ShangChai SC11CB240.1G2B1
2 Type Direct injection. Turbocharged Air to air cooling Direct injection. Turbocharged Water cooling
3 Rated output 179(KW) 174.5(KW)
4 Inter-bore of cylinder/stroke 114/135(mm) 121/152(mm)
5 Total exhaust of cylinder 8.3(L) 10.5(L)
6 Model of start motor Denso/R7.5 4N3181
7 Power of start motor 7.5(KW) 7.5(KW)
8 Voltage of starting motor 24(V) 24(V)
9 Rated speed 2200(r/min.) 2200(r/min.)
10 Max. Torque 1017(N.m)/1500RPM 912(N.m)/1400RPM
11 Starting type Electric Electric
12 Min. specific fuel consumption 205(g/Kw.h) 238(g/Kw.h)
13 Engine specific oil consumption 1.07(g/Kw.h) 0.95-1.77(g/Kw.h)
14 Net weight 617(Kg) 960(Kg)
Transmission System
1. Torque Converter
1 Type 3-element. Single stage
2 Torque ratio 2.55
3 Max. diameter of flow path 340(mm)
4 Cooling type Pressure oil circulating
2. Gear Box
1 Model ZF4WG200
2 Type Power shift, constant-mesh spur gear
3 Gear shift position 4 forward and 3 reverse gears
3. Axle and Tire
1 Type of main reducer Spiral bevel gear, single stage
2 Gear ratio of main reducer 5.111
3 Type of final reducer Single stage planetary
4 Gear ratio of final reducer 5.167
5 Total ratios 26.409
6 Size of tire 23.5-25 -16PR (L-3)
Working Device Hydraulic System
1 Model of oil pump P257-G80367ZCA6 / P124-G20NIG
2 System pressure 20(MPa)
3 Model of distribution valve 7130-B103(HUSCO)
4 Model of pilot valve 406-1400-1145 (HUSCO)
5 (D×L) Dimension of lifting cylinder Ф160×90×801(mm)
6 (D×L) Dimension of tilt cylinder Ф210×110×494(mm)
Steering System
1 Type Middle articulated frame. Full-Hydraulic steering
2 Model of steering pump P257-G80467HCX6 / G40LIG
3 System pressure 16MPa
4 Dimension of steering cylinder Ф100×50×425(mm)
5 Model of redirector BZZ3-100
Brake System
1 Type of traveling brake Wet type multi-disc brake Dual chamber dual piping air over oil brake
2 Air pressure 7-8(kgf/cm2)
3 Brake pressure 80(kgf/cm2)
4 Type of emergency brake Automatic cutting-off air brake
5 Type of parking brake Drum brake Manual control cutting-off air brake
Oil Capacity
1 Fuel(diesel) 350(L)
2 Engine lubricating oil 28(L)
3 Brake System 2×1.5(L)
4 Oil for converter and gear box 45(L)
5 Oil for hydraulic system 250(L)
6 Oil for driving axles (F/R) 70(L)+57(L)
