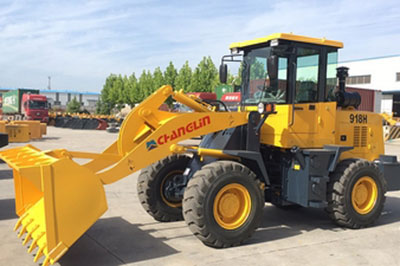

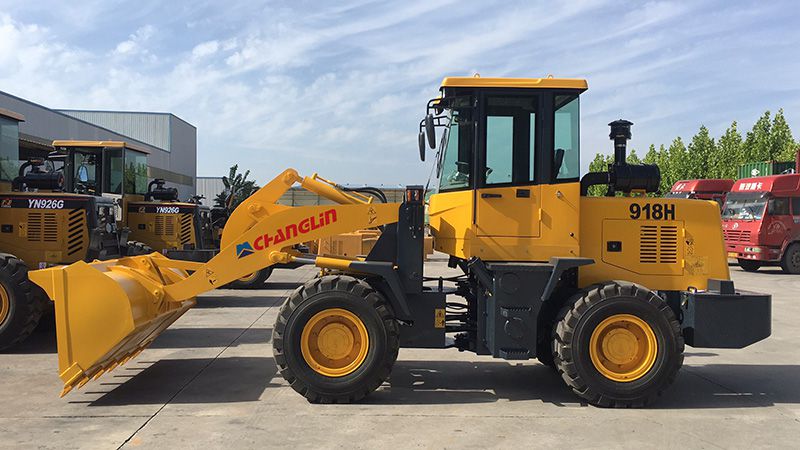

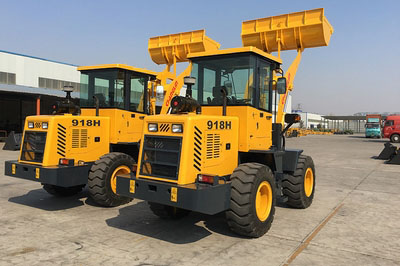

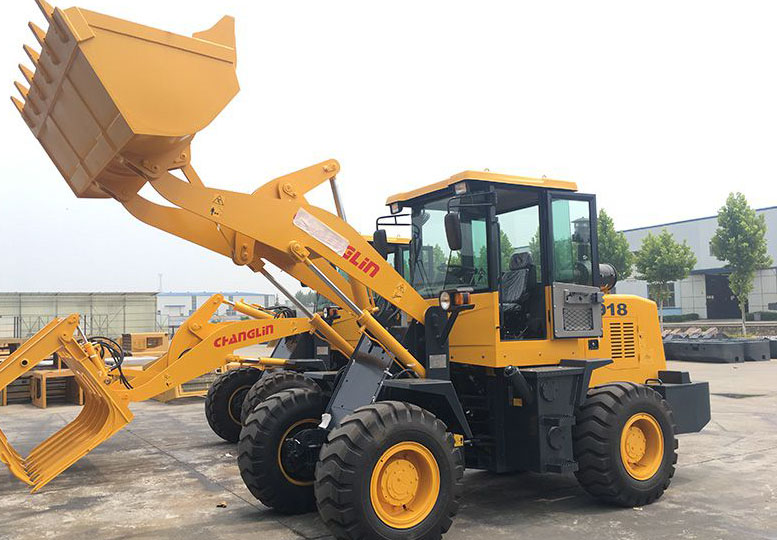

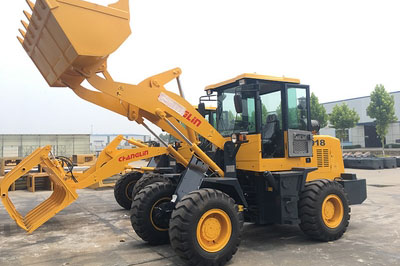

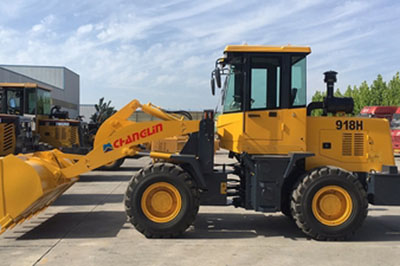

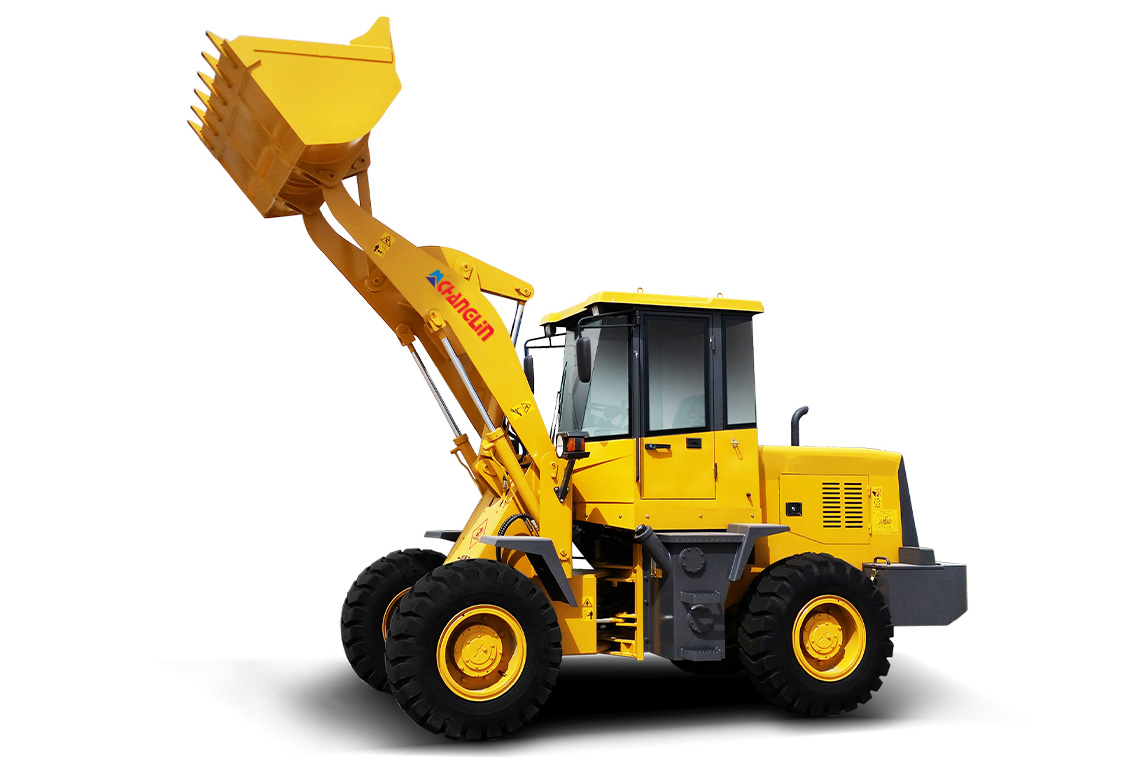

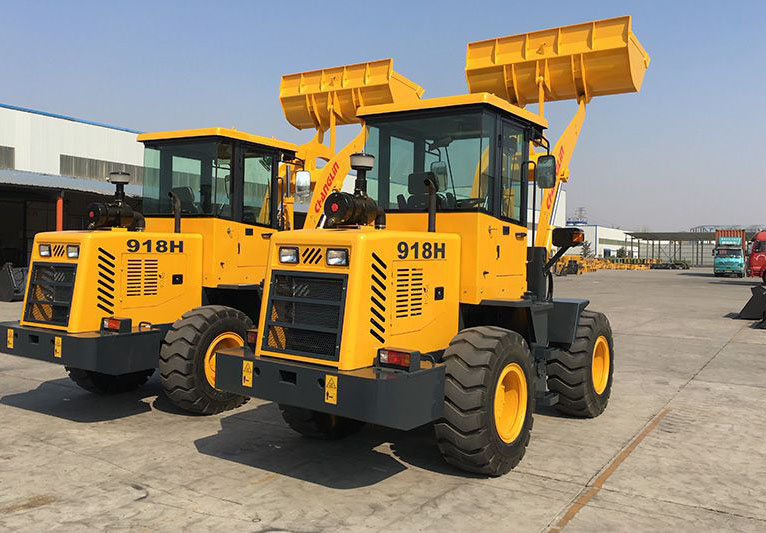

Wheel Loader ZL18H

Based on large market research, ZL18H wheel loader has been designed as a new model with high work efficiency and low cost. The construction machine is featured by reliable performance and advanced technology. The optimized power matching of loader engine and torque converter results in good traction and breakout force, as well as low fuel consumption rate. From moving sand, gravels and rocks to carrying coal and mineral materials, the ZL18H wheel loader is suited for all working conditions. It is an economical construction equipment option perfect for any small landscaping, bulk and material handling.

  • Rated Load: 2000KG
  • Rated Output: 65kW
  • Rated Bucket Capacity: 1.0m³
Inquiry
Video
Wheel Loader ZL18H
  • Specifications
  • Features
  • Videos
  • Request a Quote
Specifications
Model ZL18H
Rated load (Kg) 2000
Rated bucket capacity(m³) 1
Dump Clearance 3000
Dump Reach 750
Max. drawing force(KN) 58
Diesel engine YUNNEI YN33GBZ
Rated output(kW) 65
Transmission /
Gear positions 2 forward, 2 reverse
Length×Width×Height(mm) 5800×1860×2730
Operating weight(Kg) 5000
Wheel base(mm) 1560
Features
  • Wheel Loader ZL18H

    The wheel loader is equipped with the domestic well-known YUNNEI engine, which gives the construction machine better performance with strong power and low failure rate. Thanks to the hydraulic torque converter, optimal body weight and corresponding speed ratio, the wheel loader has both large traction and strong breakout force. As such, it has ideal ground speed with less fuel consumption.

  • Wheel Loader ZL18H

    The wheel loader has a double-axle drive, wheel-side deceleration mechanism, swing-type rear axle and large pattern tires. That’s why it has good off-road performance and compact transmission structure.

  • Wheel Loader ZL18H

    Designed with articulated frame, this wheel loader is capable of loading and unloading materials with ease. Besides, the design of small turning radius enables it flexible and maneuverable.

  • Wheel Loader ZL18H

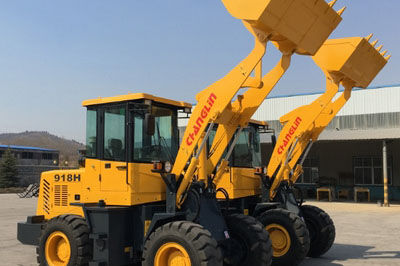

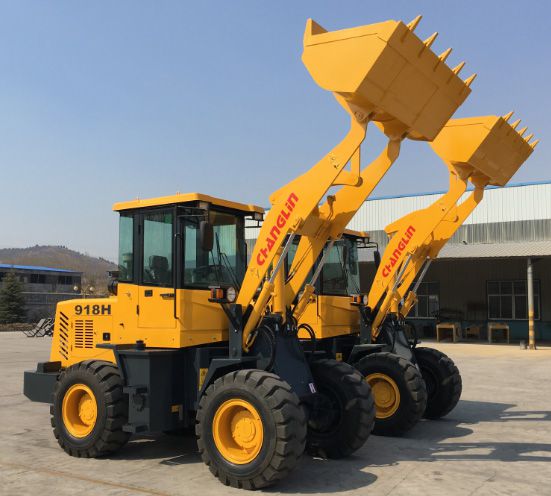

    The wheel loader is designed with single arm, high pivot point, short tie rod, new Z-bar loader arm and double-pump confluence, to ensure a strong digging ability. The loader boom has been improved on its strength to provide sufficient force for the grasping, loading and unloading of various materials. Various types of attachments are strong enough to resist high impact loads.

  • Wheel Loader ZL18H

    The wheel loader features a power split transmission having a single-stage single-phase three-element torque converter and a parallel shaft gearbox, offering high transmission efficiency as well as convenience for maintenance. The two-speed hydraulic gearshift system is adopted for smooth gear shifting without the need for cutting off the power. Since the hydraulic transmission can adapt to the change of external resistance within a certain range, there is no need to shift gears frequently, so that high efficiency can be achieved.

  • Wheel Loader ZL18H

    The wheel loader is equipped with load-sensing hydraulic system with priority valve, featuring compact structure, small size, easy maintenance, reduced energy consumption and less labor intensity.

  • Wheel Loader ZL18H

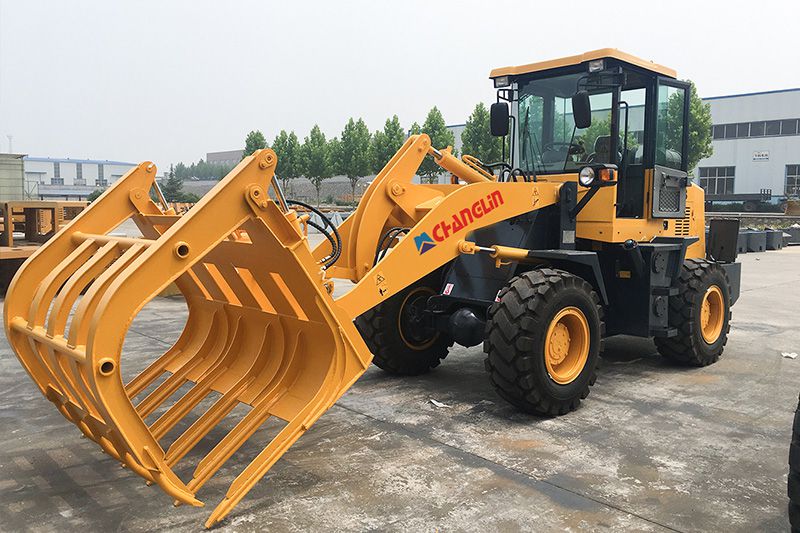

    Wheel loader attachments such as hydraulic breaker, loader arm extension, or log gripper can be installed as required.

  • Wheel Loader ZL18H

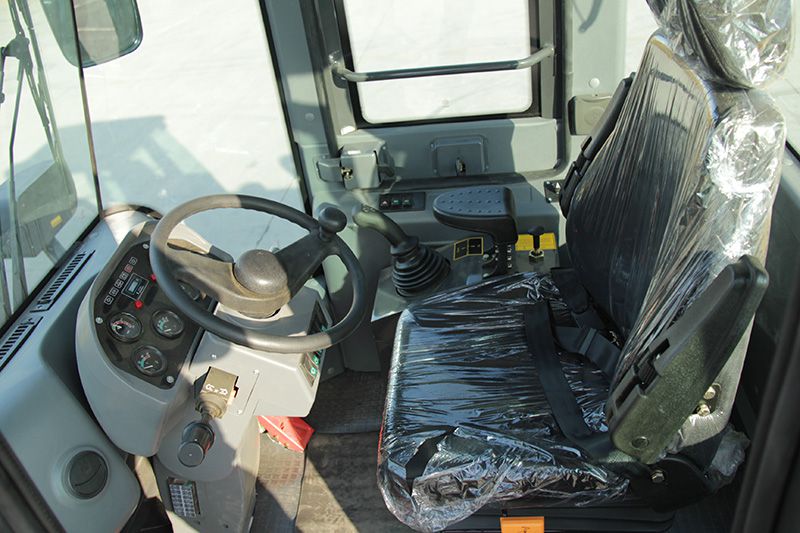

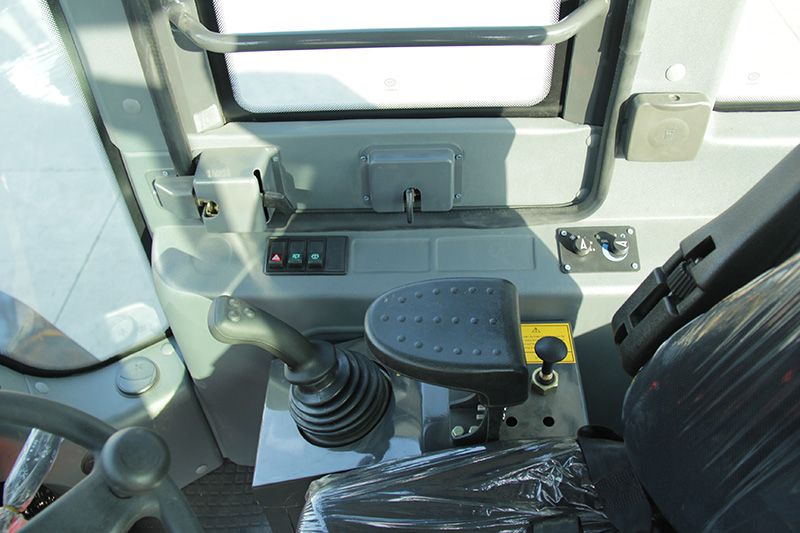

    The wheel loader has a comfortable sealed cab with improved forward visibility up to 47%. A reinforced rollover protective canopy can be equipped as required to guarantee the safety of operators.

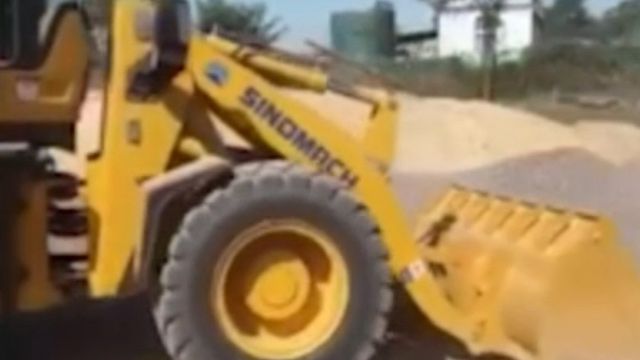

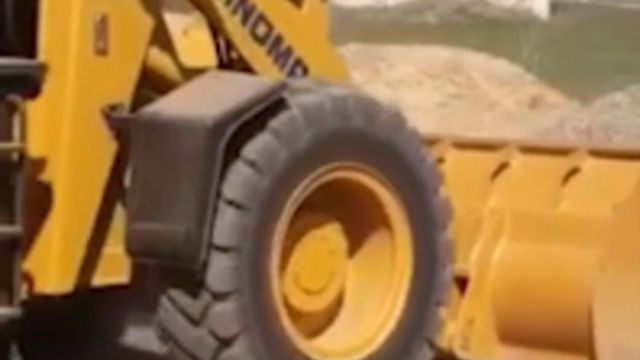

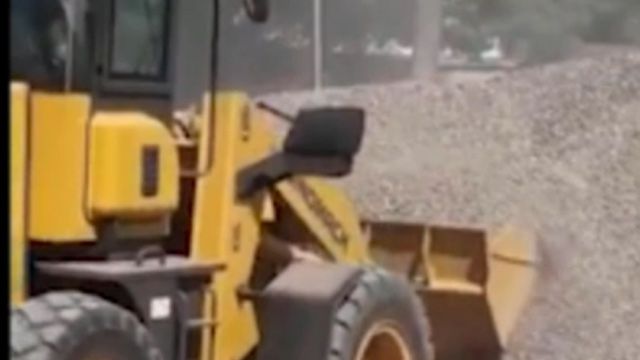

Videos
