Wheel Loader 937H

1. The 937H Wheel Loader is equipped with Dongfeng Cummins Engine.
2. This Wheel loader adopts 3 forward and 3 reverse power shift transmission.

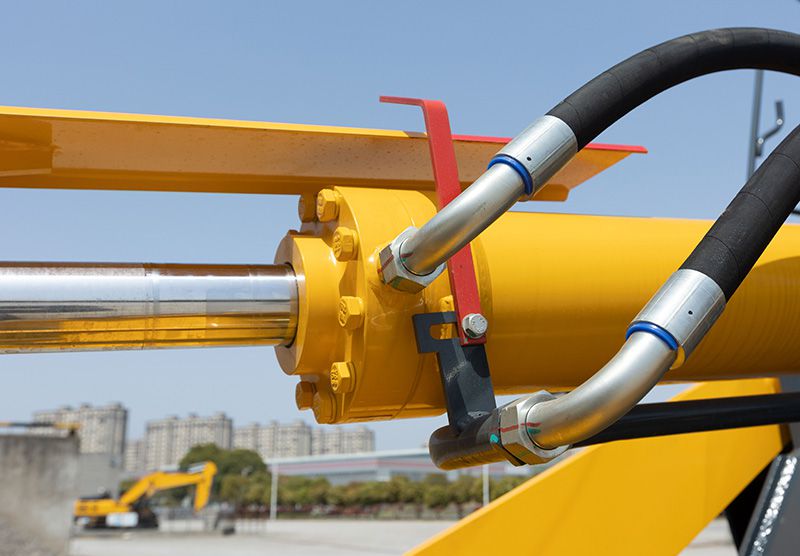

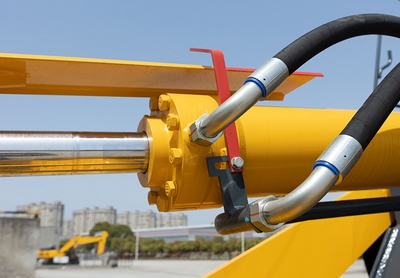

3. The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.

Technical Specification:
Model 937H
Length×width×height(mm) 6920×2430×3151
Rated load(Kg) 3000

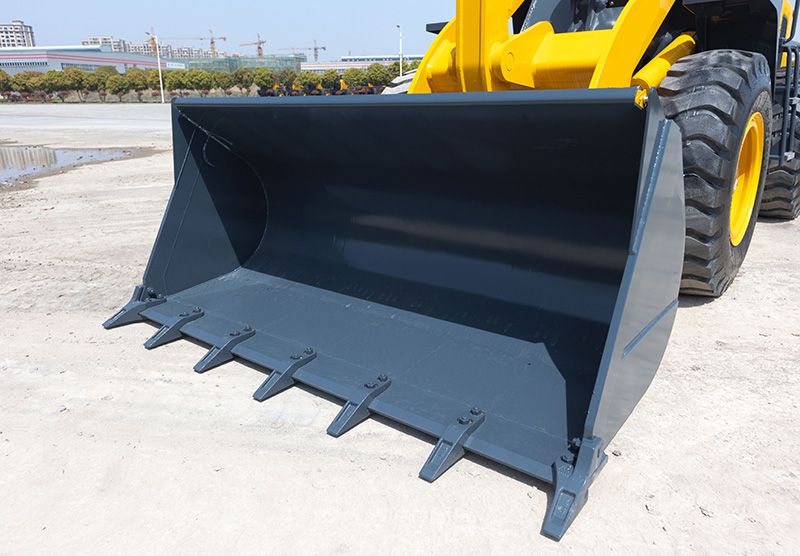

Rated bucket capacity(m3) 1.7
Operating weight(Kg) 10200
Diesel engine type Dongfeng Cummins 6BT5.9-C130
Rated output(KW) 97
Transmission case type CHANGLIN
Gear shift position 3 forward and 3 reverse
Max. traction force(KN) 83
Max. breakout force(KN) 96
Max. dump clearance(mm) 2934
Dump reach(mm) 1043
Wheel base(mm) 2750
Total time of elevating, loading and unloading (s) 9.2
