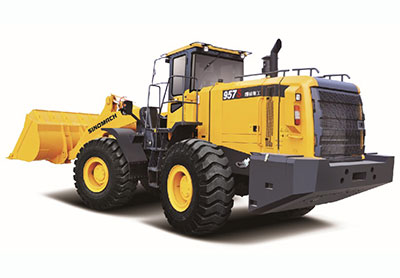

Wheel Loader 957S

Our 957S wheel loader is equipped with high quality SHANGCHAI SC11CB220G2B1 engine or Cummins engine. It uses 4 forward and 3 reverse power shift transmission. The vehicle is also provided with dual-pump confluence hydraulic system and load-sensing fully hydraulic steering system. What's more, it adopts KD switch with simple and efficient operation, as well as sealed cylinder with high sealing capacity and reliability.

Technical Specification:
Model 957S
Length×width×height(mm) 8130×2946×3450 /8270×2946×3450
Rated load(Kg) 5000
Rated bucket capacity(m3) 3.0
Operating weight(Kg) 16700
Diesel engine type SHANGCHAI SC11CB220G 2B1 /Cummins 6LTAA 9.3 220
Rated output(KW) 162/160
Transmission case type ZF WG200
Gear shift position 4 forward and 3 reverse
Max. traction force(KN) 150
Max. breakout force(KN) 165
Max. dump clearance(mm) 3100
Dump reach(mm) 1150
Wheel base(mm) 3200
Total time of elevating, loading and unloading (s) 11
