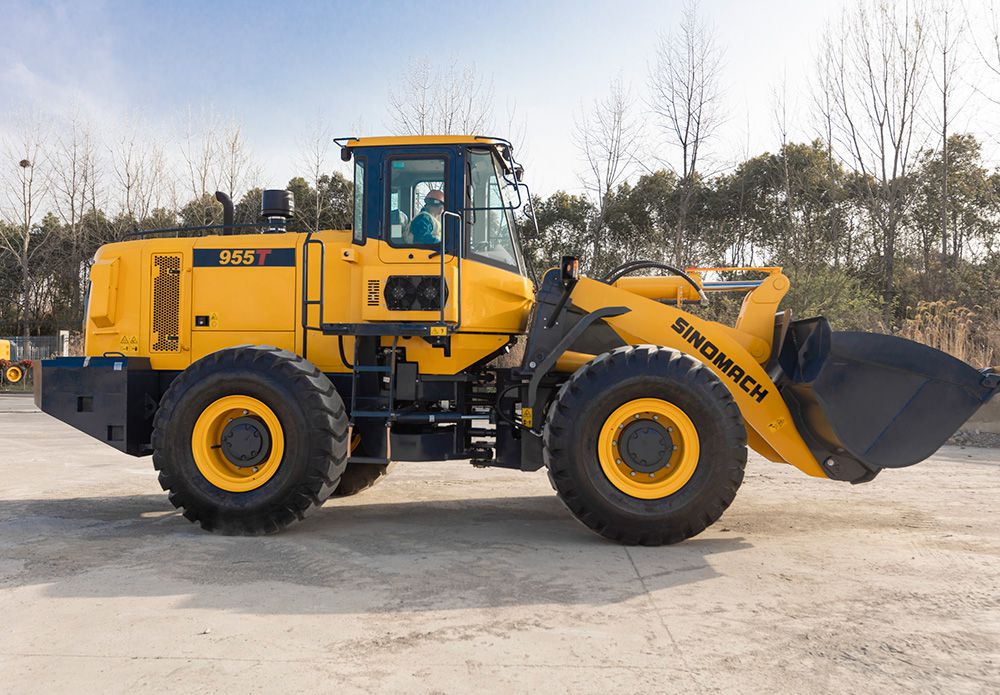

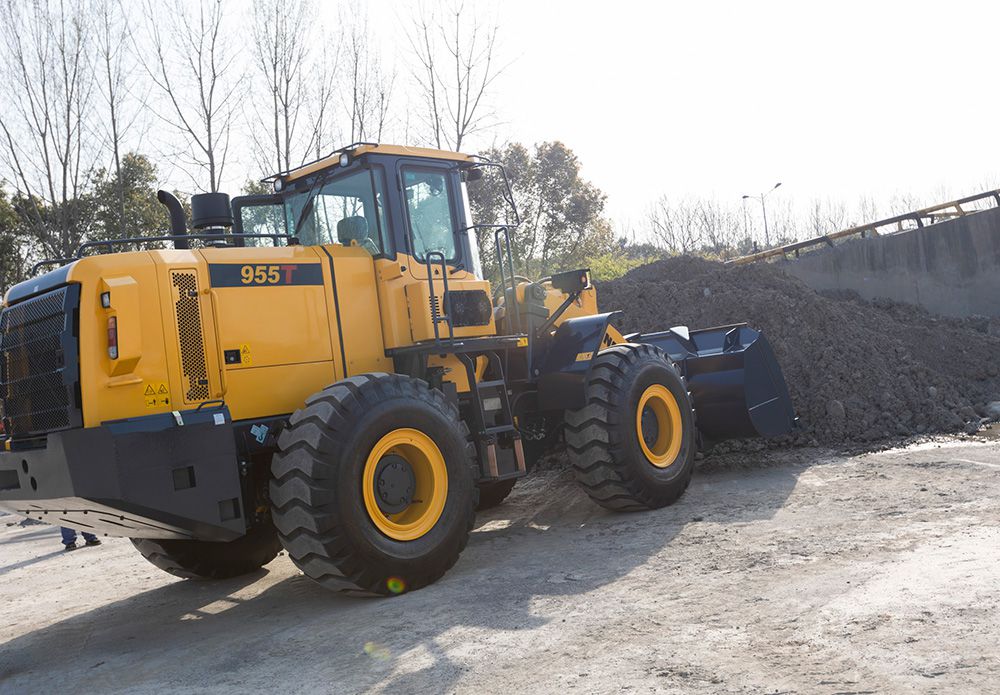

Wheel Loader 955T

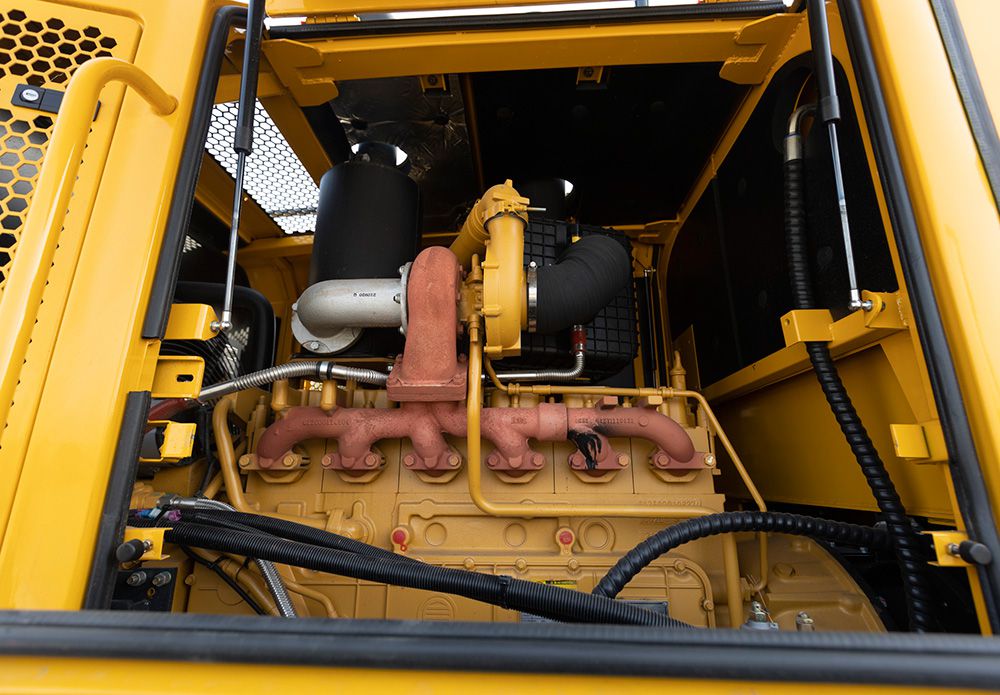

1. The wheel loader 955T is installed with Weichai engine.
2. Two forward and one reverse power shift transmissions are installed.

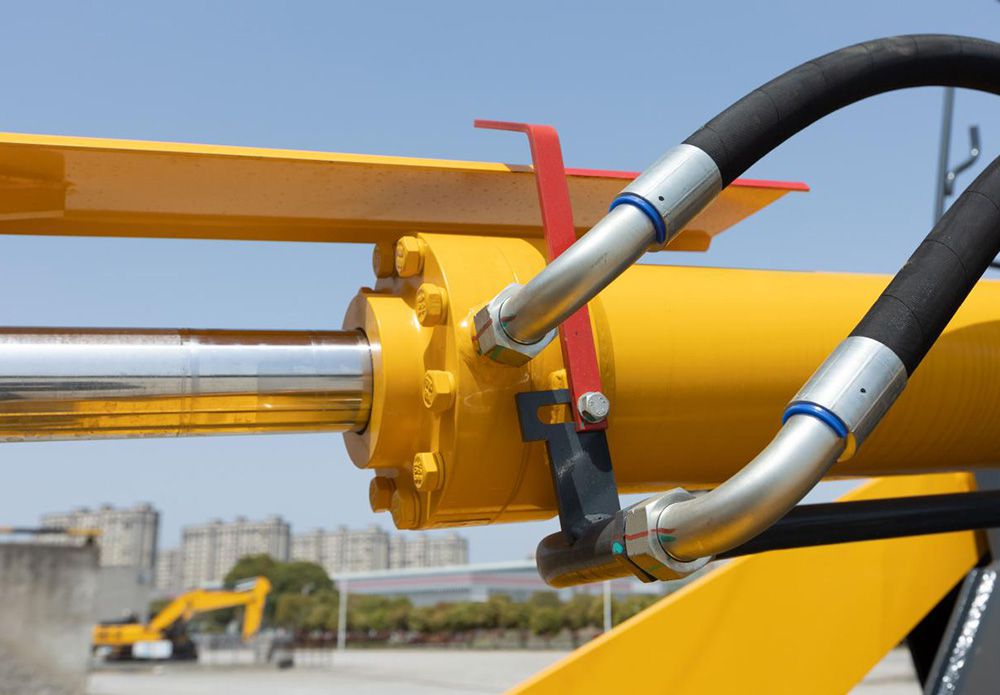

3. Combined sealing cylinder brings good sealing performance and reliability.

Technical Specification:
Model 955T
Length×width×height(mm) 7900×2946×3500
Rated load(Kg) 5000
Rated bucket capacity(m3) 3.0
Operating weight(Kg) 16500
Diesel engine type Weichai WD10G 220E23
Rated output(KW) 162
Transmission case type CHANGLIN
Gear shift position 2 forward and 1 reverse
Max. traction force(KN) 150
Max. breakout force(KN) 160
Max. dump clearance(mm) 3091
Dump reach(mm) 1090
Wheel base(mm) 3100
Total time of elevating, loading and unloading (s) 11.8
