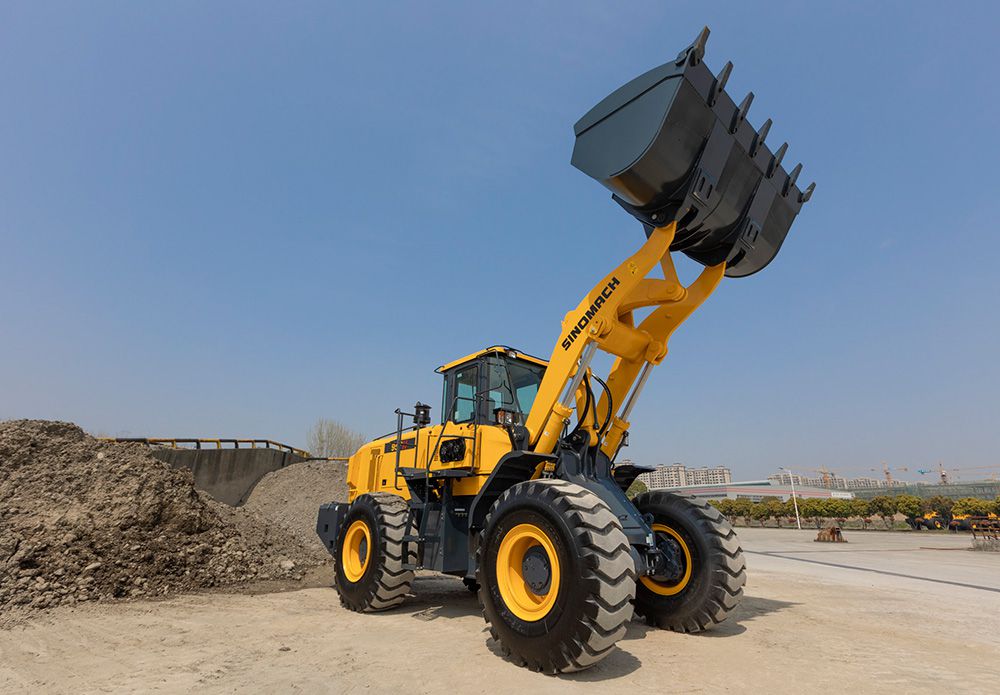

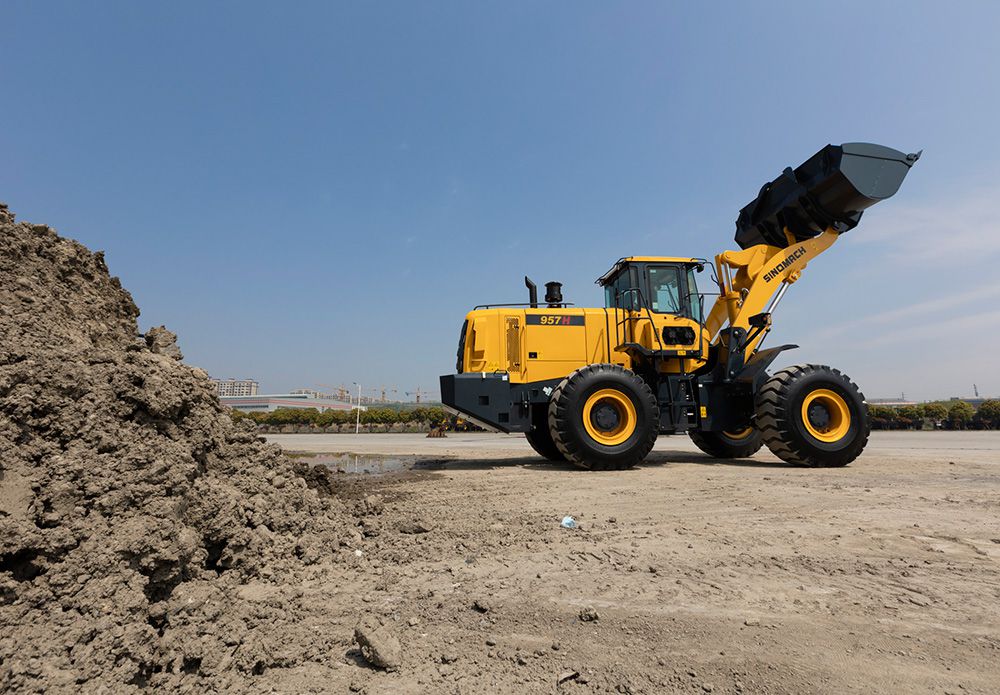

Wheel Loader 957H

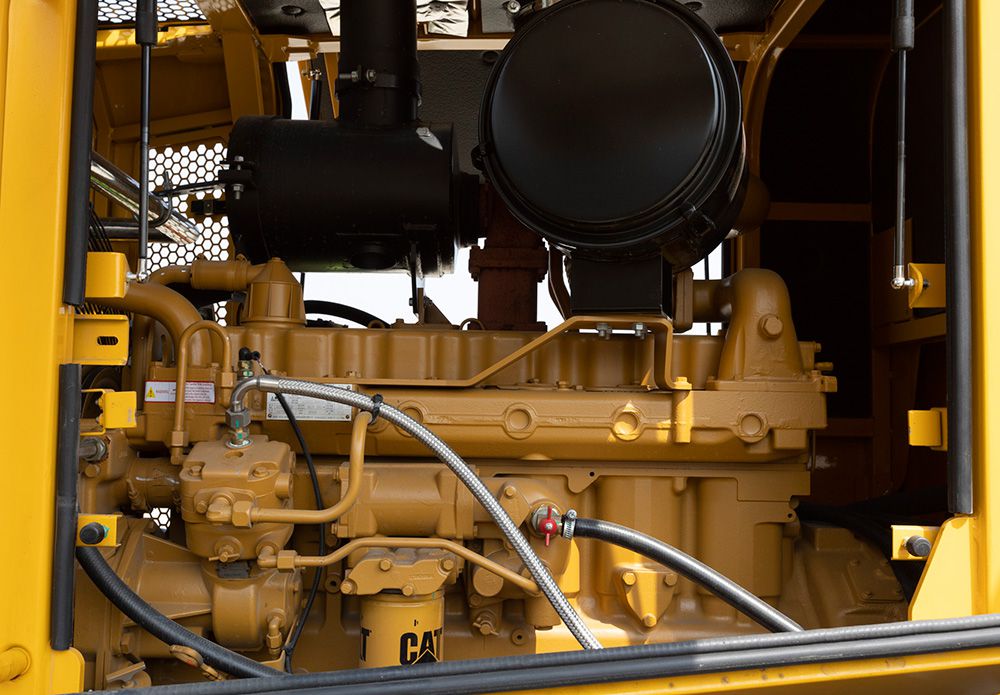

1. The 957H Wheel Loader is equipped with reliable SHANGCHAI SC11CB220G2B1 engine or Cummins engine.
2. This Wheel loader adopts 3 forward and 3 reverse power shift transmission.

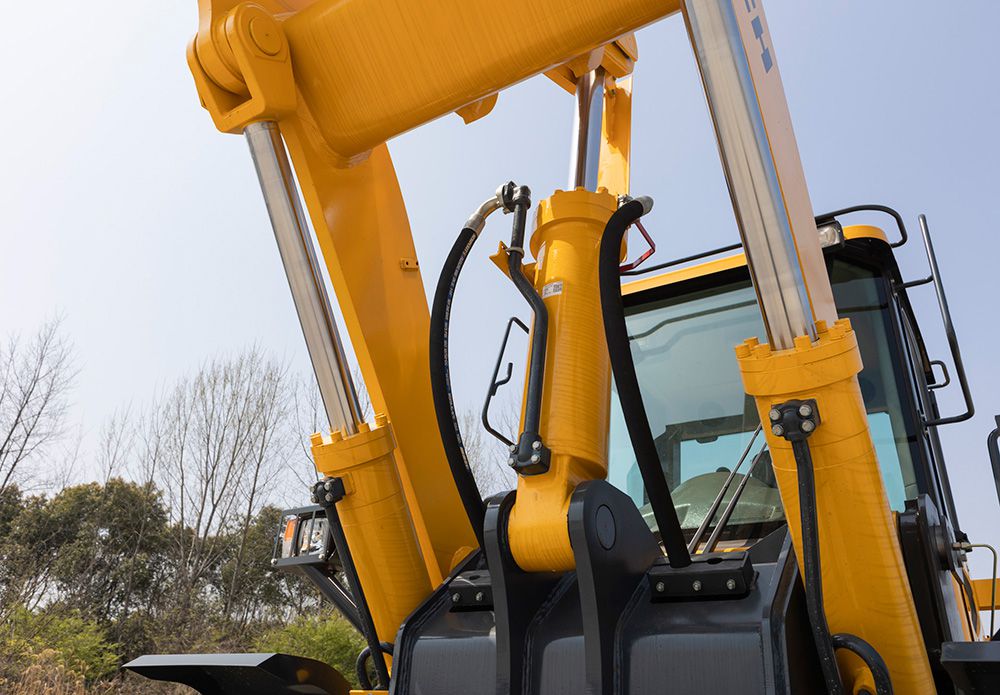

3. The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.

Technical Specification:
Model 957H
Length×width×height(mm) 8130×2946×3450 /8270×2946×3450
Rated load(Kg) 5000
Rated bucket capacity(m3) 3.0
Operating weight(Kg) 16700
Diesel engine type SHANGCHAI SC11CB220G 2B1/ Cummins 6LTAA 9.3 220
Rated output(KW) 162/160
Transmission case type CHANGLIN
Gear shift position 3 forward and 3 reverse
Max. traction force(KN) 150
Max. breakout force(KN) 165
Max. dump clearance(mm) 3100
Dump reach(mm) 1150
Wheel base(mm) 3200
Total time of elevating, loading and unloading (s) 11
