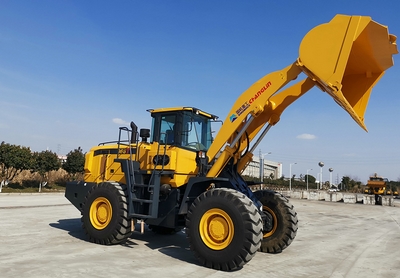

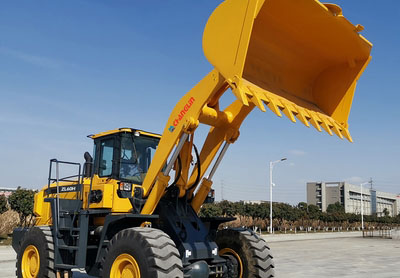

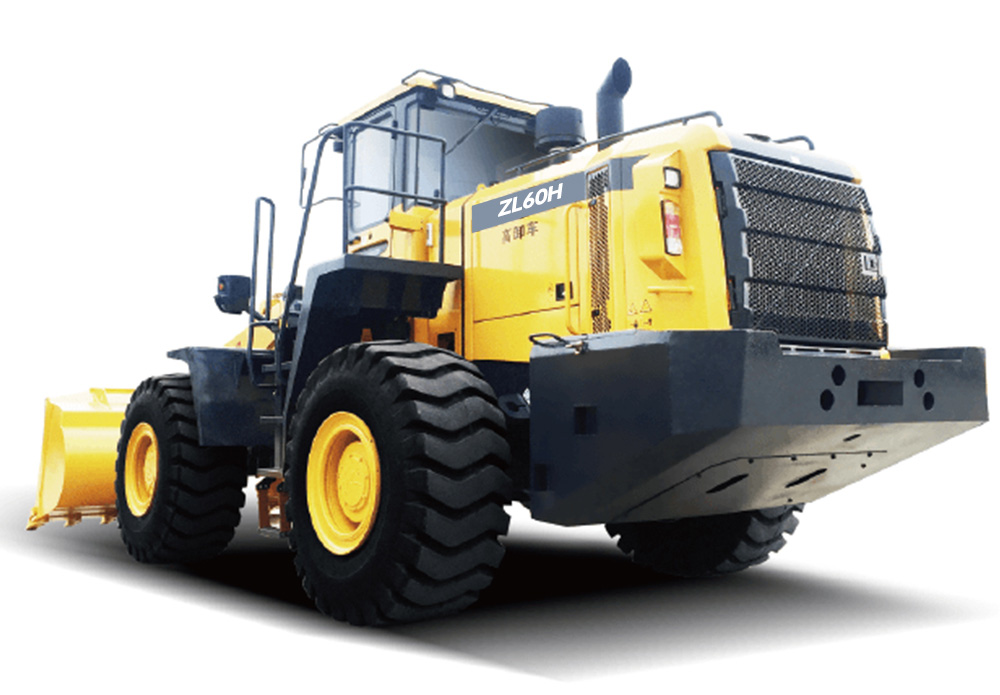

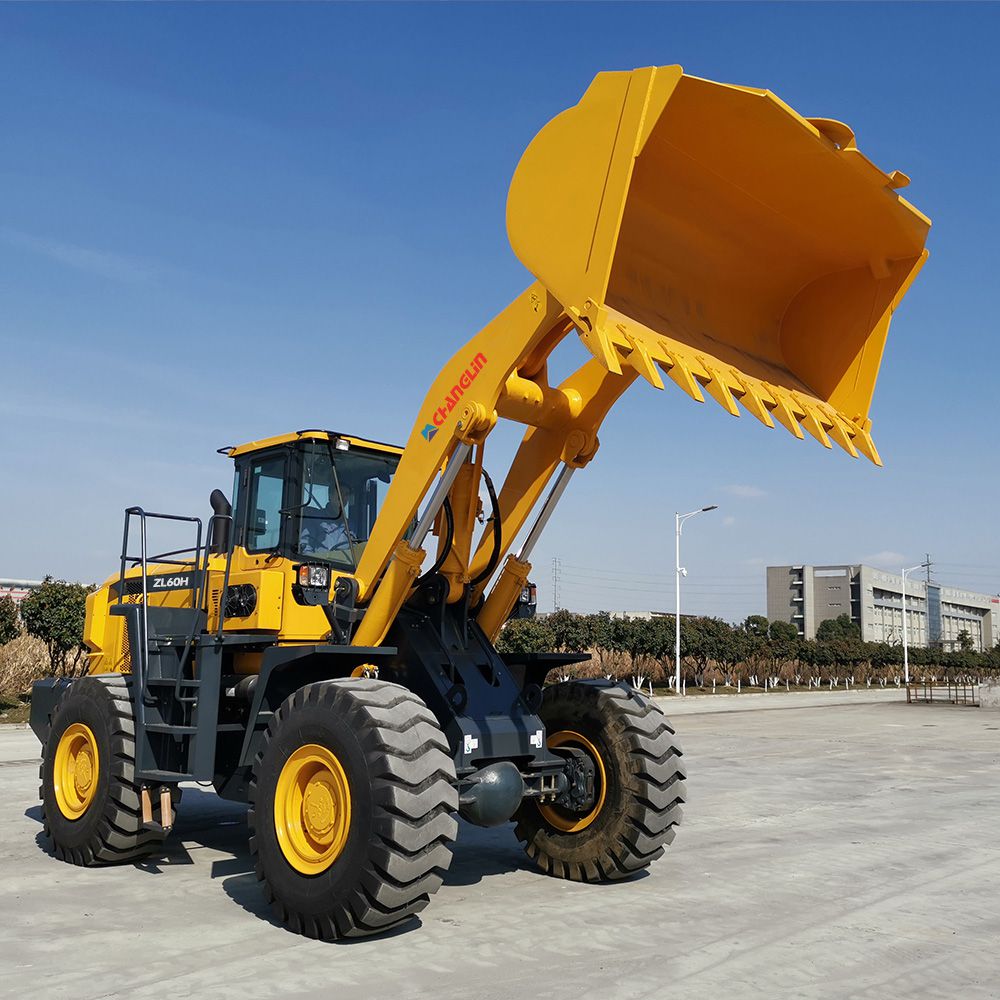

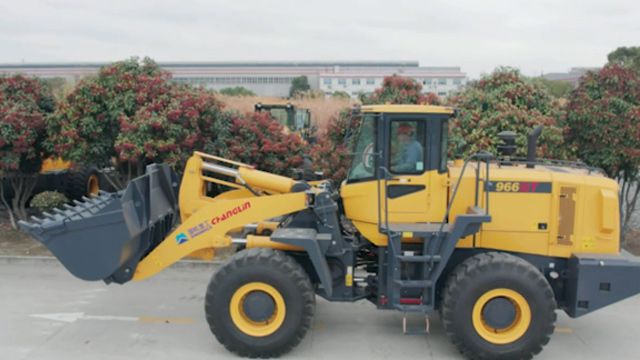

Wheel Loader ZL60H

ZL60H wheel loaders are CHANGLIN's fourth generation of construction equipment designed with large vehicle body and long wheelbase to deal with heavy loads in various working conditions. The ZF gearbox adopted in the wheel loader enables better power matching and more comfortable control. The ZL60H wheel loader is designed with a range of new features, functions and state-of-the-art technological improvements, all of which contribute to enhanced work efficiency, superior performance, increased productivity and higher operation safety.

  • Rated Load: 6000KG
  • Rated Output: 174.5kW
  • Rated Bucket Capacity: 3.7m³
Inquiry
Video
Wheel Loader ZL50Z
  • Specifications
  • Features
  • Videos
  • Request a Quote
Specifications
Model ZL60H
Rated load (Kg) 6000
Rated bucket capacity(m³) 3.7
Dump Clearance 3325
Dump Reach 1433
Max. drawing force(KN) 180
Diesel engine ShangChai SC11CB240.1G2B1
Rated output(kW) 174.5
Transmission ZF
Gear positions 4 forward, 3 reverse
Length×Width×Height(mm) 8714×2900×3550
Operating weight(Kg) 19500
Wheel base(mm) 3300
Features
  • Wheel Loader ZL60H

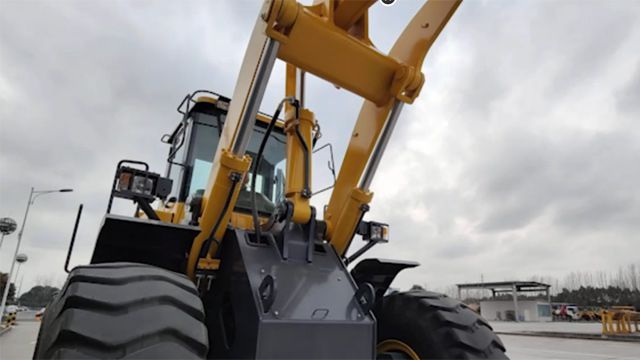

    The frame hinges are perfectly matched with tapered roller bearing thanks to its innovative structure design, resulting in an increased contact area which leads to the high reliability of the hinge even under severe working conditions.

  • Wheel Loader ZL60H

    The wheel loader adopts ZF4WG200 gearbox and torque converter transmission system. The gearbox with electric-hydraulic control executes fixed axis power shift transmission and can achieve forced deceleration, providing easy operation and high work efficiency.

  • Wheel Loader ZL60H

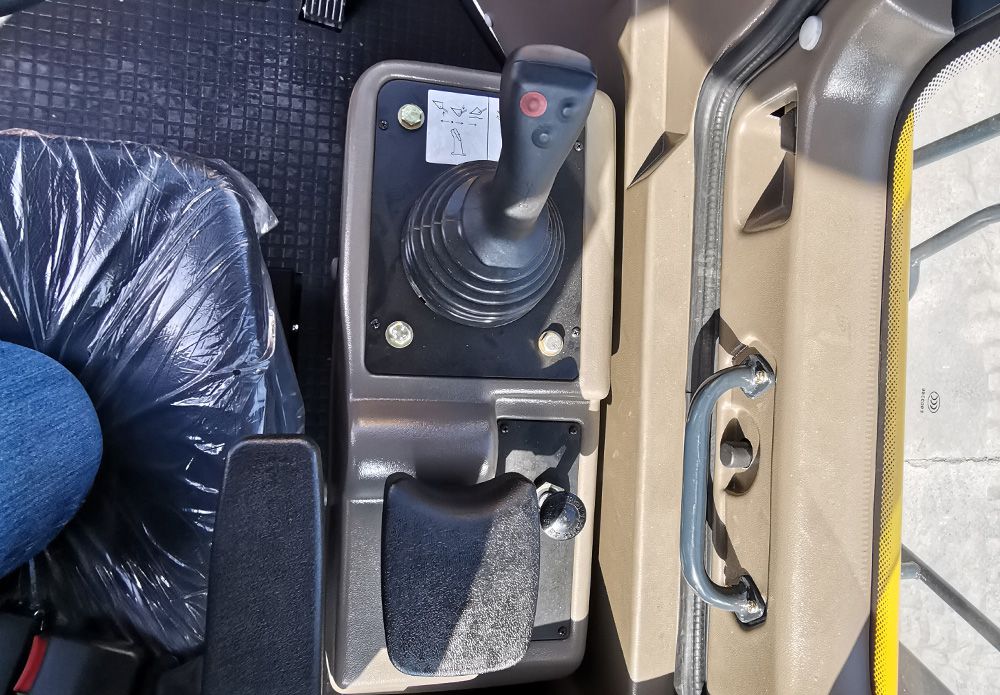

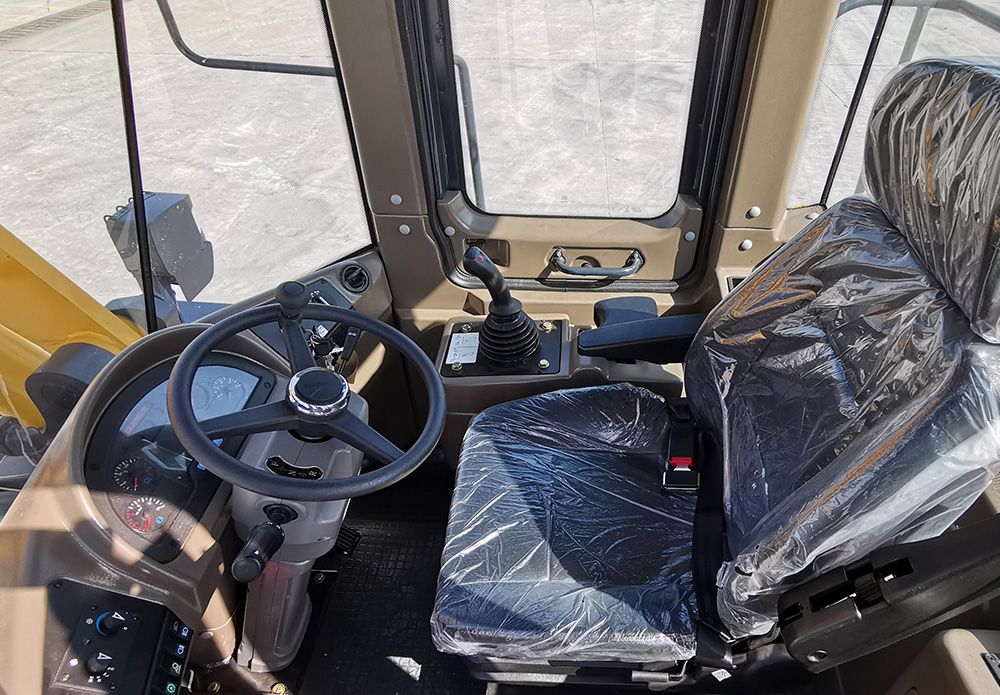

    The load sensing hydrostatic steering system with small-displacement steering gear and low pressure control makes the steering easy and precise while greatly lowering labor intensity. The adjustable steering wheel enables the driving easier and more comfortable.

  • Wheel Loader ZL60H

    The hydraulic system features an innovative design of heat dissipation that is approved through simulation validation and verification testing, providing reasonable heat dissipation under any working conditions so that the radiator efficiency and hydraulic system reliability can be improved.

  • Wheel Loader ZL60H

    The T-series large-opening exterior cover allows the free flow of air through the front air inlet and rear air outlet of the radiator. In addition, a newly designed cab has a superior seal which ensures that the noise level is far lower than the national standard.

  • Wheel Loader ZL60H

    The relays and fuses are centrally located, the grease nipple is located at the side of the frame, and the pressure measuring port is arranged in the front of the auxiliary box. All of these arrangements make it easy and convenient for maintenance

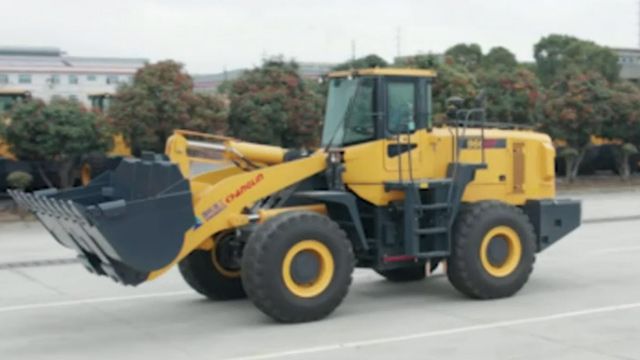

Videos
