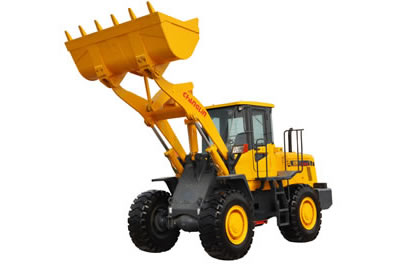

Wheel Loader 936

936 Wheel Loader

This product has been discontinued and removed from our shelves.

1. This 936 Wheel Loader is equipped with Chinese WeiChai Deutz or YUCHAI-branded Engine
2. 3 forward 3 reverse gears
3. Hydraulic cylinder comes with combination seal for reliable leak-free performance.

Technical Specification:
Model 936
Length×Width×Height(mm) 6920×2430×3150
Rated load(Kg) 3000
Rated bucket capacity(m3) 1.7
Operating weight(Kg) 10200
Diesel engine Deutz WP6G 125E22/YUCHAI YC6B125-T20
Rated output(KW) 92
Transmission case CHANGLIN
Gear positions 3 forward and 3 reverse gears
Max. traction (KN) 105
Max. breakout force(KN) 96
Max. dump clearance(mm) 2934
Dump reach(mm) 1043
Wheel base(mm) 2750
Total cycle time (s) 9.2
SINOMACH Construction Machinery and Engineering Vehicle, High Quality!!
Besides the 936 wheeled loader, SINOMACH provide other kinds of heavy equipment for your road and building construction sites.
SINOMACH as a leading heavy equipment manufacturing company since 1961, is making our effort to provide high quality construction equipment and civil engineering equipment for customers.
