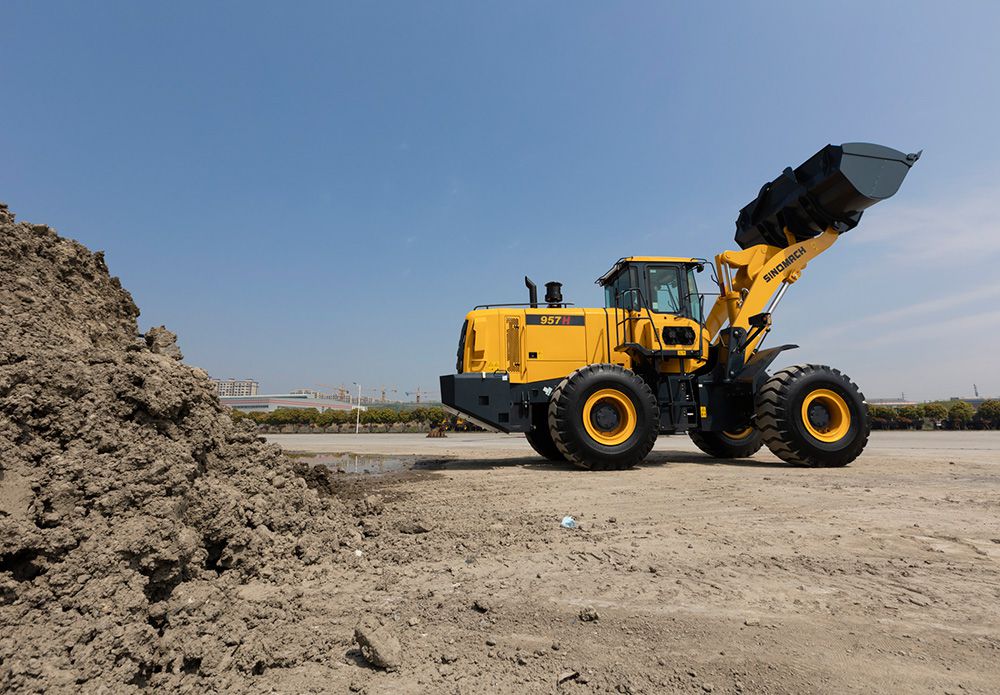

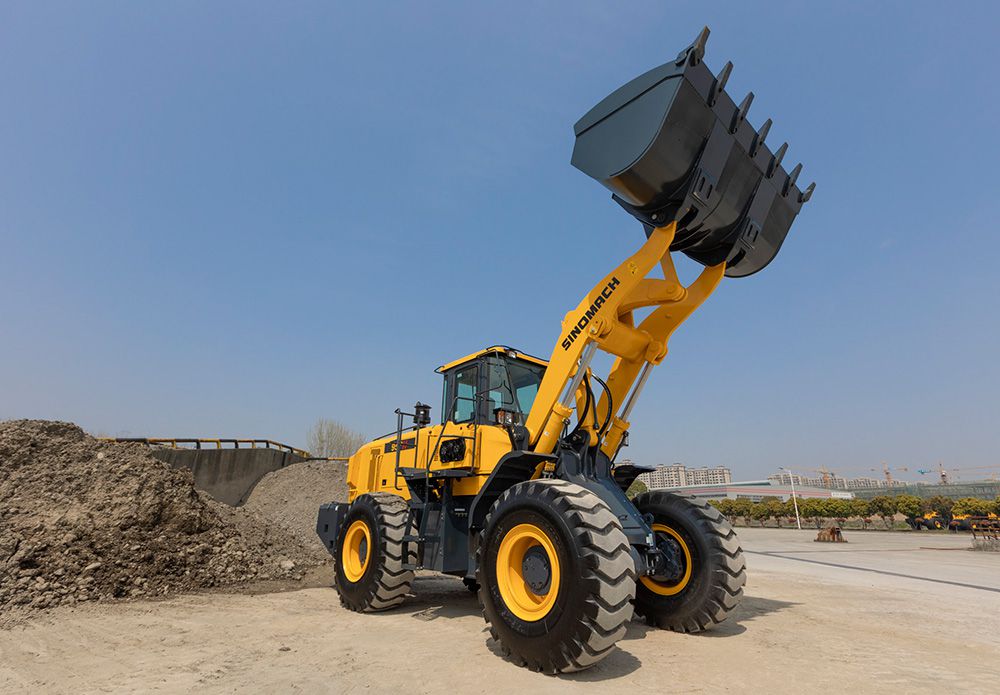

Wheel Loader 957Z

1. The 957Z wheel loader utilizes 4 forward and 3 reverse power shift transmission.
2. The KD switch allows for easy and efficient operation of the engineering vehicle.
3. This equipment adopts load-sensing fully hydraulic steering system and dual-pump confluent flow working hydraulic system.

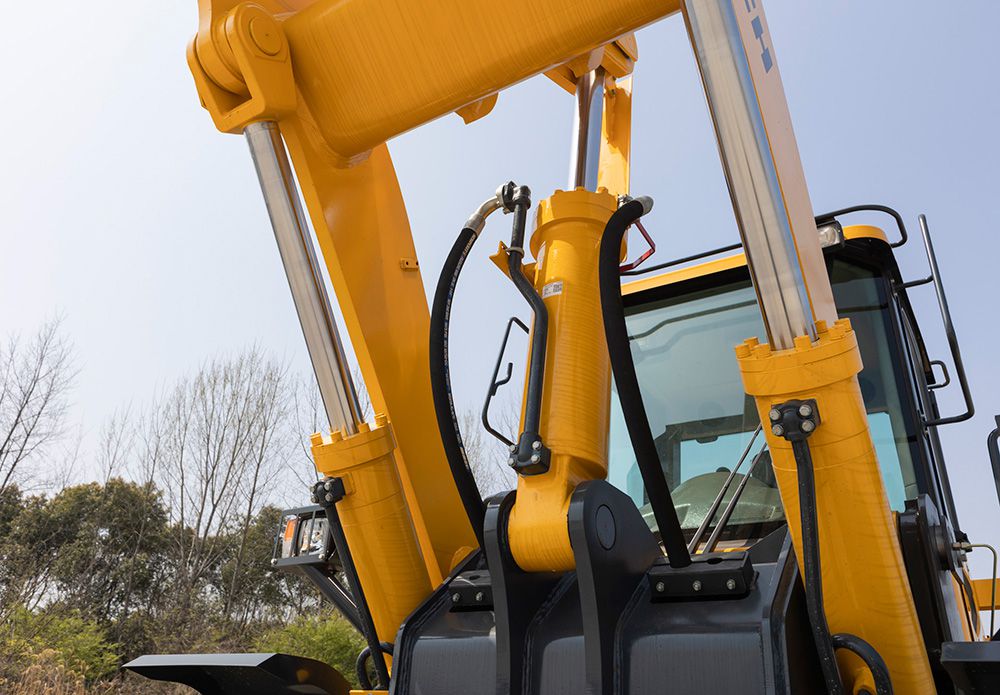

4. The combined seal cylinder ensures high sealing performance and working reliability.

Technical Specification:
Model 957Z
Length×width×height(mm) 8130×2946×3450
Rated load(Kg) 5000
Rated bucket capacity(m3) 3.0
Operating weight(Kg) 16700

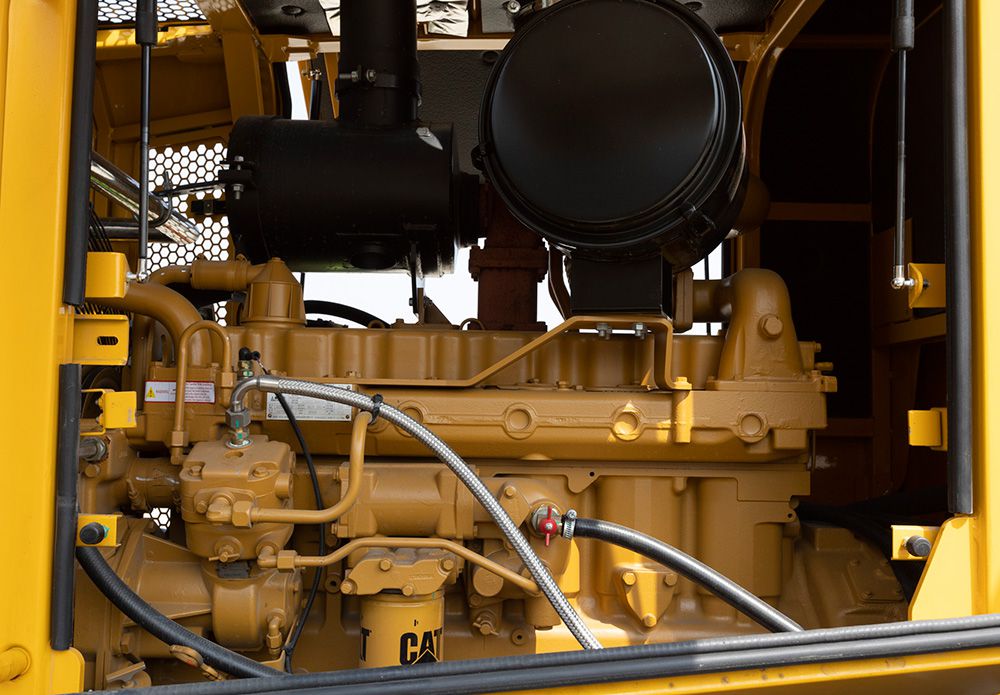

Diesel engine type SHANGCHAI SC11CB220G 2B1
Rated output(KW) 162
Transmission case type ZF WG200
Gear shift position 4 forward and 3 reverse
Max. traction force(KN) 150
Max. breakout force(KN) 165
Max. dump clearance(mm) 3100
Dump reach(mm) 1150
Wheel base(mm) 3200
Total time of elevating, loading and unloading (s) 11
