Wheel Loader 932

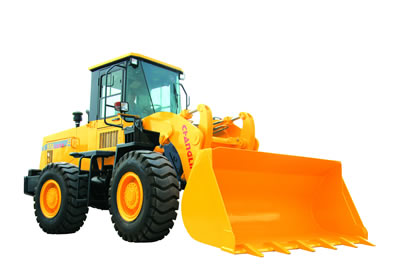

932 Wheel Loader

This product has been discontinued and removed from our shelves.

1. This 932 Wheel Loader is equipped with reliable Chinese-branded engine
2. Three forward and three reverse gears
3. Hydraulic cylinder comes with combination seal for reliable leak-free performance

Technical Specification:
Model 932
Length×Width×Height(mm) 6720×2510×3095
Rated load(Kg) 3000
Rated bucket capacity(m3) 1.7
Operating weight(Kg) 9600
Diesel engine YITUO LR6M3 -22(LR6M3 -G66Q-u2)/YUCHAI
YC6B125-T20(B7635)
Rated output(KW) 92
Transmission case CHANGLIN
Gear positions 3 forward and 3 reverse gears
Max. traction KN) 86.7
Max. breakout force(KN) 88
Max. dump clearance(mm) 2820
Dump reach(mm) 900
Wheel base(mm) 2600
Total cycle time (s) 12.3
SINOMACH Construction Machinery and Engineering Vehicle, High Quality!!
