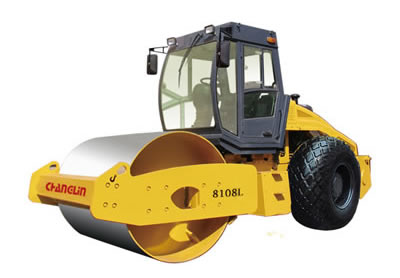

8108L Double Drum Vibratory Roller

1. Quality engine delivers great power, low emission and fuel consumption.
2. Mechanical drive powers the axle for traveling. Electro-hydraulic control provides two vibration amplitudes. Hydraulic steering hinge is another value-added feature to the vibratory roller.
3. Two braking systems are used, including the hand brake and air-over-oil operated foot brake, for safety and reliability.
4. Compact design, curved hood with esthetic appeal.
5. Airy driver’s cabin with optional air-conditioner for cooling and heating.
6. Optional cam-driven vibrating drum for poweful compaction of cohesive soil.

Specifications of 8108L Double Drum Vibratory Roller :
Model 8108L
Length×Width×Height(mm) 5500×2300×3000
Operating weight(Kg) 10000
Nominal Vibration Amplitude high/low(mm) 1.74/0.82
Frequency(HZ) 32
Centrifugal-Force high/low(KN) 198/93
Gradient capacity (%) 25
Wheel base(mm) 2900
Diesel engine Cummins 4BTA3.9-C100
Rated output(KW) 80
SINOMACH construction machinery/construction equipment: wheel loaders, road rollers, motor graders, backhoe loaders, pavers, Truck Mounted Crane , concrete truck mixers.
