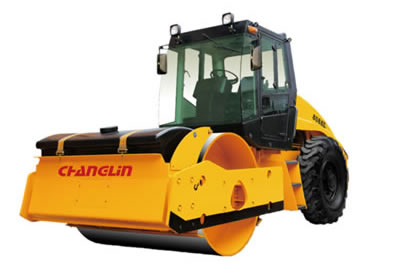

8088L Vibrating Road Roller

Main Features
1. With the mechanical drive, hydraulic vibration and articulated steering, this 8088L vibratory road roller features remarkable flexibility, high reliability and high cost effectiveness.
2. It has two kinds of braking system, namely hand brake and hydraulic foot brake, thus maximizing safety and reliability of the road machinery.
3. It employs high quality and efficient engine, with gearbox installed on the back side. The engine cover comes in complete open design, thus providing the best space for maintenance.
4. The water spraying unit for the front and rear drums is electrically controlled, thus ensuring ease of operation.
5. The road roller has spacious and comfortable driver cabin that offers broad vision.

Technical Parameters of the Road Roller
Model 8088L
Length × Width × Height (mm) 5360×2270×2970
Operating weight (Kg) 8000
Nominal Amplitude high/low (mm) 0.4
Frequency (HZ) 50
Centrifugal force high/low (KN) 80
Gradeability (%) 25
Wheel base (mm) 2750
Diesel engine type SNH 4100AY-1
Rated output (KW) 40.4
