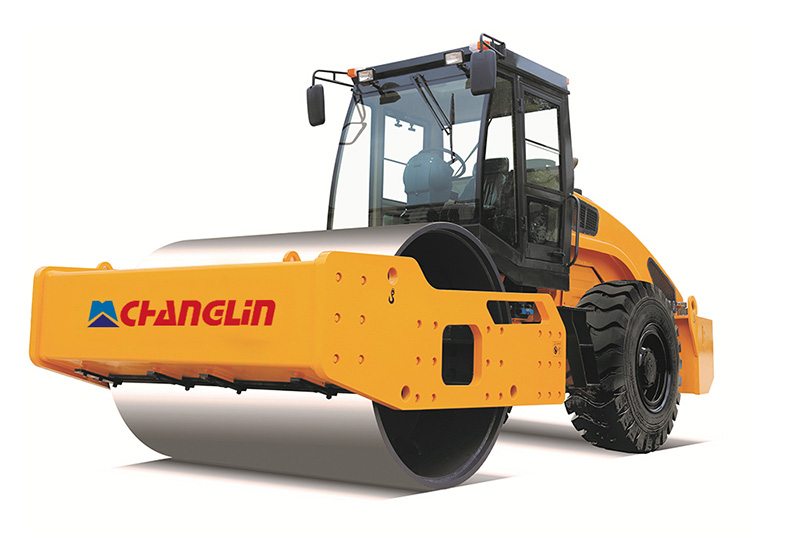

8168(K)-3 Single Drum Vibratory Roller

1. Hydraulic pump, vibration motor, shaft couplings and other key parts are of well-known international brand, ensuring reliability and durability in operation.
2. Hydraulic cylinder comes with combination seal for reliable leak-free performance.
3. Driver cab is designed with safety and ease of use in mind. Adjustable cab seat comes with a suspension system.
4. Pneumatic brake, available with hydro-pneumatic control, makes it easy to bring the road roller to a stop.

Specifications of 8168(K)-3 Single Drum Vibratory Roller :
Model 8168(K)-3
Length×Width×Height(mm) 6166×2330×3200
Operating weight(Kg) 16000(17625)
Nominal vibration amplitude high/low(mm) 1.9/1.0
Frequency(HZ) 30
Centrifugal-Force high/low(KN) 297/148
Gradient capacity (%) 30
Wheel base(mm) 3150
Diesel engine Weichai WP6G 160E201
Rated output(KW) 118
SINOMACH construction machinery/construction equipment: wheel loaders, road rollers, motor graders, backhoe loaders, pavers, Truck Mounted Crane , concrete truck mixers.
