Truck Mounted Crane SQ8

  • Max. lifting capacity 8000Kg
  • Max. lifting moment 200KN.m
  • Max. lifting range ability 15300mm
Inquiry
Truck Mounted Crane SQ8
  • 360° Full Rotation
    The SQ8 truck mounted crane which is a straight boom crane can achieve 360°full rotation since it employs a worm gear reducer.
  • Excellent Stability
    This heavy engineering vehicle has a retractable front outrigger with a longer span up to 5.56m and a fixed rear outrigger to guarantee its stability when working. Hydraulic rear outrigger is optional to be equipped to our truck mounted crane to increase its stability and make it adaptable for more complex working conditions. In addition, hexagon sections guarantee good lateral stability of the construction crane.
  • Reliable Control System
    The operation of our truck mounted crane is controlled by the main control valve directly and the outriggers are controlled by separated valves. Selector valves are employed to the lifting equipment to avoid improper operation. Both the main control valves and the outrigger control valves support both-side manipulation.
  • Great Safety
    Height limit switch, over winding alarm device and high power LED lights are standard configurations to guarantee the operation safety our of our construction lifting machine. Additionally, moment limiter is optional to be installed to the hoisting equipment for higher operation safety.
Technical Parameters
Order Item Unit Parameter
1 Maximum load moment kN·m 200
2 Maximum lifting load kg 8000
3 Maximum working height mm 13300
4 Boom length (fully retracted) mm 4600
5 Maximum lifting height (from the ground) mm About 16600
6 Lifting ratio   6/4
7 Maximum elevation angle of boom (°) 75
8 Minimum elevation angle of boom (°) 0
9 Lateral span of the front outrigger mm 2114~5560
10 Lateral span of the rear outrigger mm 2200
11 Maximum lifting speed Main hook (single rope) Lifting m/min 87
Lowering 87
12 Rotation speed r/min ≤2.5
13 Rotation angle ° 360° full rotation
14 Crane weight kg 3168 (including rear outrigger)
15 Fuel pump ------------- Gear pump
16 Fuel tank capacity L 150
17 Working pressure of hydraulic system MPa 23
18 Flow of hydraulic system L/min 60

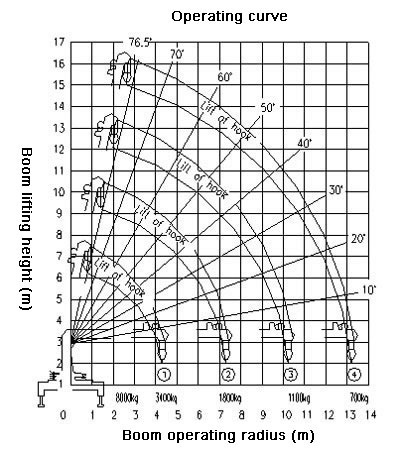

Rated Lifting Capacity of Truck Mounted Crane (Unit: kg.)
Working radius (m) 4.6m 7.6m 10.55m 13.6m
2.5 *8000 *5700 5200
3.0 *6000 5000 4300
3.5 4500 4000 3850 3400
4.0 3900 3500 3400 3100
4.5 (4.3) 3400 3100 3100 2900
5.0   2850 2750 2600
5.5   2600 2550 2400
6.0   2300 2350 2200
7.0   2000 2000 1850
8.0   (7.3) 1800 1750 1625
9.0     1550 1450
10.0     (10.25) 1100 1300
11.0       1200
12.0       1000
13.0       (13.3) 700
Lifting ratio The lifting ratio is 6 for the items marked with * and is 4 for the other items.

Besides the SQ8 model truck mounted crane, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.

SINOMACH as a reliable heavy equipment company in China, is making construction equipment for road construction and foundation engineering with 6 decades of experience, SINOMACH has been a high quality heavy equipment maker in China and provide construction equipment and engineering vehicle with resonable prices.
