Truck Mounted Crane (SQ6.3 Straight Boom Crane)

Truck Mounted Crane (SQ6.3 Straight Boom Crane)

Characteristics
1. As a straight boom crane, the SQ6.3 truck mounted crane uses worm gear reducer to achieve 360°full rotation.
2. A hydraulic retractable horizontal outrigger whose full span is 5.2m is installed to our lifting machine as standard configuration.
3. Thanks to its hexagon sections, this material lifting equipment features high lateral stability.
4. The operating levers distributed near the cargo compartment of the truck mounted crane support both-side operation.
5. Our truck mounted crane is equipped with 4-function manual main control valves and 4-function manual outrigger control valves.
6. To guarantee machine operation safety, the hydraulic hoisting machine comes with standard configurations of height limit switch, over winding alarm device and high power LED lights, and optional configuration of moment limiter.

Parameters of Truck Mounted Crane
Model SQ6.3
Max. lifting moment(KN.m) 157
Max. lifting capacity(Kg) 6300
Max. operating range ability(mm) 11500
Max. lifting range ability(mm) 13800
Max. stabilizer spread (mm) 2130-5210
Rotation angle All rotation
Crane weight(Kg) 2726
Oil tank capacity(L) 140
Pressure of hydraulic system(MPa) 23
Oil Flow of hydraulic system(L/min) 60

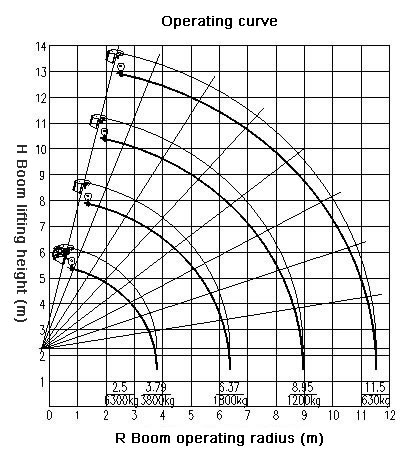

Rated Lifting Capacity of Truck Mounted Crane (Unit: kg.f)
R / L 4.06m 6.64m 9.22m 11.8m
2.5 *6300 *5000 3000
3.0 *5000 3350 2750 2160
3.5 4000 3020 2520 1990
4.0 (3.79) 3800 2750 2310 1830
4.5   2500 2120 1680
5.0   2280 1950 1540
5.5   2100 1800 1410
6.0   1950 1670 1290
6.5   (6.37) 1800 1560 1180
7.0     1470 1080
7.5     1350 990
8.0     1300 910
8.5     1250 840
9.0     (8.95) 1200 780
9.5       730
10.0       690
10.5       660
11.0       640
11.5       630
Lifting ratio The lifting ratio is 6 for the items marked with * and is 4 for the other items.
Welcome to choose SINOMACH construction machinery (engineering vehicle/construction equipment).
