Truck Mounted Crane (SQ6.3Z3Q Folding Boom Crane)

Truck Mounted Crane (SQ6.3Z3Q Folding Boom Crane)

Features
1. This SQ6Z3Q truck mounted crane is a folding boom crane with three-point axles.
2. Worm gear reducer enables our lifting equipment to rotate 360°.
3. The truck mounted crane adopts manual horizontal outriggers with full span of 5m.
4. Designed with hexagon sections and constructed with two welding joints, our material handling device has excellent lateral stability.
5. Its folding boom endows this heavy engineering machinery with a wider working range not at the expense of the available area of the cargo compartment.
6. The external telescopic oil cylinder of our truck mounted crane is of reliable performance and is space saving.
7. Moment limiter is optional to be configured to our folding boom hoist to provide a safer working environment for the operator.

Technical Parameters of Truck Mounted Crane
Model SQ6.3Z3Q
Max. lifting moment(KN.m) 138
Max. lifting capacity(Kg) 6300

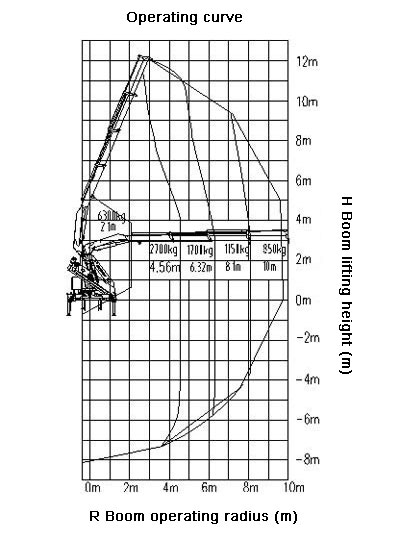

Max. operating range ability(mm) 10100
Max. lifting range ability(mm) 12800
Max. stabilizer spread (mm) 2200-5240
Rotation angle All rotation
Crane weight(Kg) 2400
Oil tank capacity(L) 100
Pressure of hydraulic system(MPa) 28
Oil flow of hydraulic system(L/min) 25
Welcome to choose SINOMACH construction machinery (engineering vehicle/construction equipment).
