Truck Mounted Crane (SQ5 Straight Boom Crane)

Truck Mounted Crane (SQ5 Straight Boom Crane)

Features
1. Our SQ5 truck mounted crane is a straight boom crane with worm gear reducer. Thanks to the worm gear reducer, the truck crane is able to rotate at 360°.
2. This lifting equipment has a manual horizontal outrigger whose full span is 5m.
3. Hexagon section provides our truck mounted crane with good lateral stability.
4. The operating levers are distributed near the cab and are able to achieve both-side operation.
5. Our goods handling machine is equipped with 6-function manual main control valve to control the rotation, telescoping, working range, lifting of the boom and the telescopic movement of the vertical outrigger cylinders.
6. Standard configuration of our truck mounted crane includes the height limit switch, over winding alarm device and high power LED lights. Moment limiter is optional to be configured to this engineering vehicle to enhance operating safety.

Technical Parameters of Truck Mounted Crane
Model SQ5
Max. lifting moment(KN.m) 125
Max. lifting capacity(Kg) 5000
Max. operating range ability(mm) 8600
Max. lifting range ability(mm) 10800
Max. stabilizer spread (mm) 2234-5005
Rotation angle All rotation
Crane weight(Kg) 2000
Oil tank capacity(L) 100
Pressure of hydraulic system(MPa) 23
Oil Flow of hydraulic system(L/min) 40

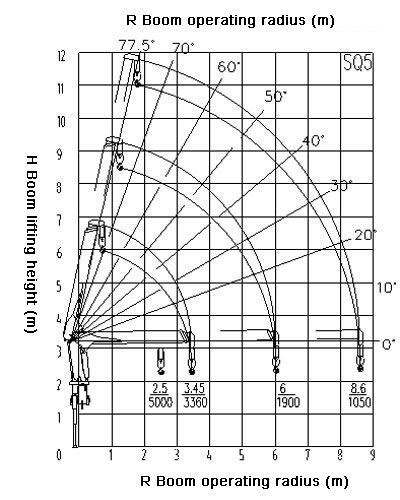

Rated Lifting Capacity of Truck Mounted Crane (Unit: kg.f)
R / L 3.72m 6.3m 8.88m
2.5 5000 3800
3.0 4000 3500 2500
3.5 (3.45) 3360 3200 2200
4.0 2900 2000
4.5 2600 1900
5.0 2300 1850
5.5 2000 1750
6.0 1900 1600
6.5 1450
7.0 1250
8.6 1100
Welcome to choose SINOMACH construction machinery (engineering vehicle/construction equipment).
