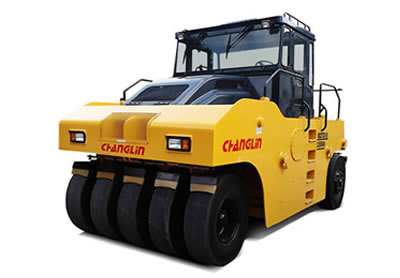

Road Roller 8272-5

The road roller coming in the model of 8272-5 is a kind of pneumatic roller. It adopts eleven-wheel vibration, which brings high compacting quality. It is equipped with two sets of sprinkling system. By adjusting the capacity of ballast water, the ground pressure can be changed correspondingly.

Due to these advantages, the road roller has found applications in compaction of cohesive or non-cohesive base and sub-base layers of various materials. For example, it can be used to compact asphalt in the construction of roads.

Technical Specification:
Model 8272-5
Length×width×height(mm) 4945×2844×3393
Max. operating weight(Kg) 27000
Min. operating weight(Kg) 14800
Rolling width(mm) 2718
Tire number 5+6
Turning radius(mm) 9000
Gradient capacity(%) 20
Diesel engine type ShangChai SC8D180G 2B1
Rated output(KW) 132
