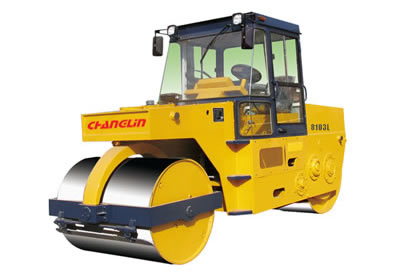

Static Roller 8103L

Static Roller 8103L

1. Hydraulic power steering and mechanical drive make for reliable performance.
2. Drum rollers are mounted on a rectangular frame with low center of gravity and high stability.
3. Narrow front frame and airy driver cab provide clear vision during steering.
4. Scrapers and sprinklers are mounted on both front and rear drums.

Technical Specification:
Model 8103L
Length×Width×Height(mm) 4500×1580×2660
Max. Operating weight(Kg) 1000
Min. Operating weight(Kg) 8000
Rolling width(mm) 1270
Tire number
Turning radius(mm) 6500
Gradient capacity(%) 20
Diesel engine Cummins 4BT3.9-C80
Rated output(KW) 60
