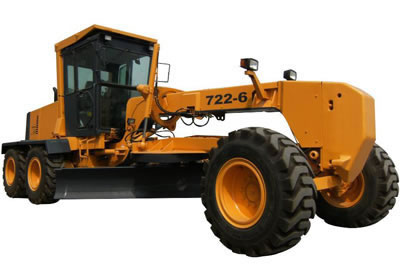

Motor Grader 722-6

Features of Motor Grader:
1.Equipped with original Cummins engine
2. Single-handle electro-hydraulic controlled power-shift T/M, 6 forward &3reverse shifts makes operation easy and convenient
3. Hydraulic lock, auto lock/unlock NO-SPIN differential guarantees stability and powerful traction
4. Ideal axel load allocation provides excellent stability while cutting hard surface
5. Serviceable, efficient hydraulic system enables every part to be fully used
6. Box-typed frame and advanced T/M enable it to complete heavy-duty work
7. A wide working range is accomplished through flexible blade suspension system and articulated frame

Specifications of Motor Grader:
Model 722-6
Length×width×height(mm) 9290×4320×3600
Operating weight(Kg) 16500
Max. traction force(KN) 86.1
Diesel engine type CUMMINS QSB6.7-C220
Rated output(KW) 164
Transmission case type HangChi WG180
Gear shift position 6 Forward and 3 reverse gears
Min. turning radius(mm) 7400
Blade Dimensions 4320×545×16
Max. lifting height(mm) 450
Max. grading depth(mm) 535
High quality construction machinery, construction equipment and engineering vehicle are provided by SINOMACH , which include wheel loader, wheel loaders, road rollers, motor graders, backhoe loaders, skid steer loades, pavers, concrete truck mixers, Truck Mounted Crane and other high quality construction machinery, construction equipment and engineering vehicle.
