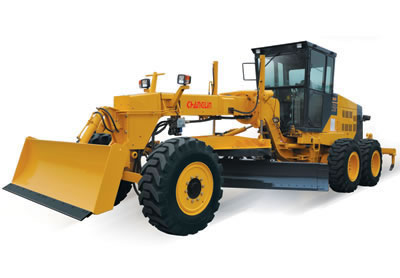

Motor Grader 722-5

Features of Motor Grader:
1. The 722-5 motor grader is equipped with original ShangChai diesel engine.
2. The sing-handle and electro-hydraulic controlled power-shift transmission adopts 6 forward and 3 reverse gear design, making operation easy and convenient.
3. The adopted NO-SPIN differential with auto lock and unlock function provides high stability and powerful traction.
4. This motor grader features ideal axel load allocation, so that it can cut hard surface while maintaining great stability.
5. Due to the efficient hydraulic system, every working part can be fully controlled.
6. Through the flexible blade suspension system and articulated frame, a variety of tasks can be accomplished.
7. The vehicle can be used to complete heavy-duty work, due to its box-type frame and advanced transmission system.

Specifications of Motor Grader
Model 722-5
Length×width×height(mm) 9235×4320×3370
Operating weight(Kg) 16600
Max. traction force(KN) 105
Diesel engine type ShangChai SC11CB220G 2B1
Rated output(KW) 162
Transmission case type HangChi 6WG180
Gear shift position 6 Forward and 3 reverse gears
Min. turning radius(mm) 7400
Blade Dimensions 4320×545×16
Max. lifting height(mm) 450
Max. grading depth(mm) 535
