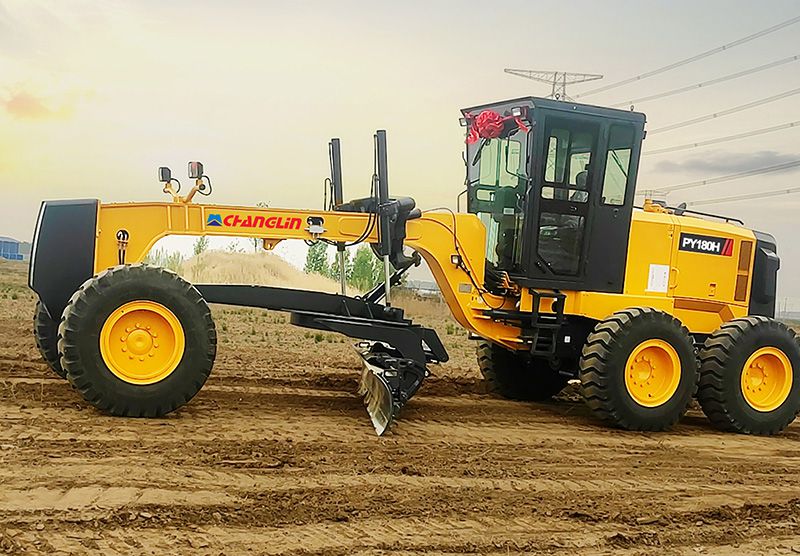

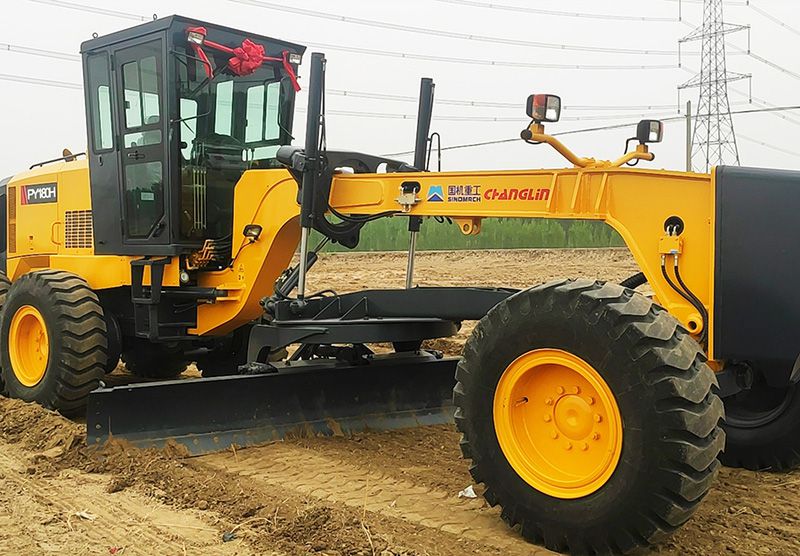

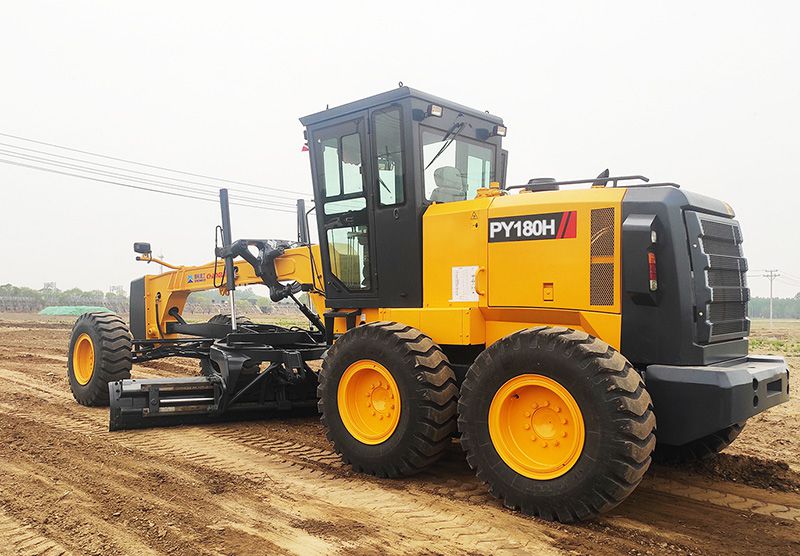

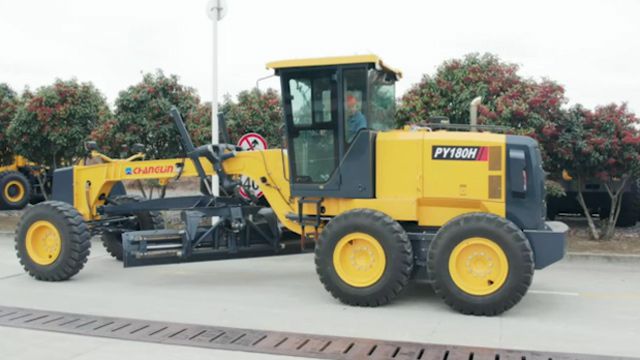

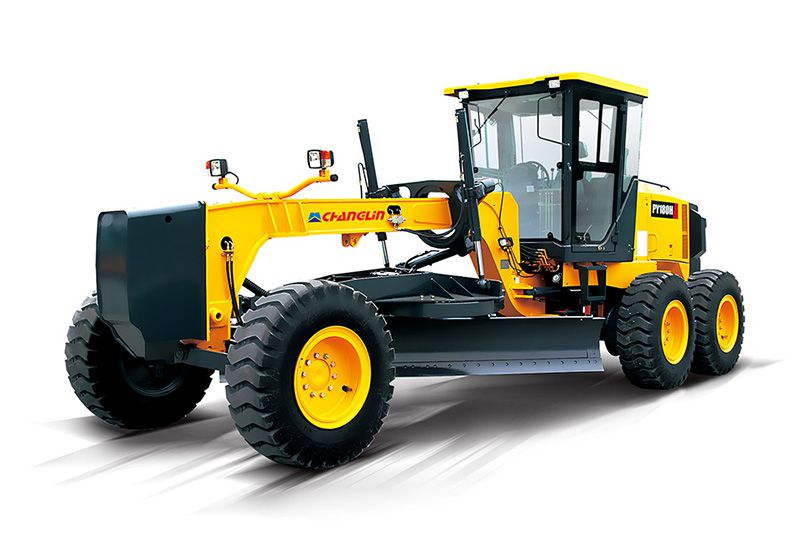

Motor Grader 717H

Features of Motor Grader :

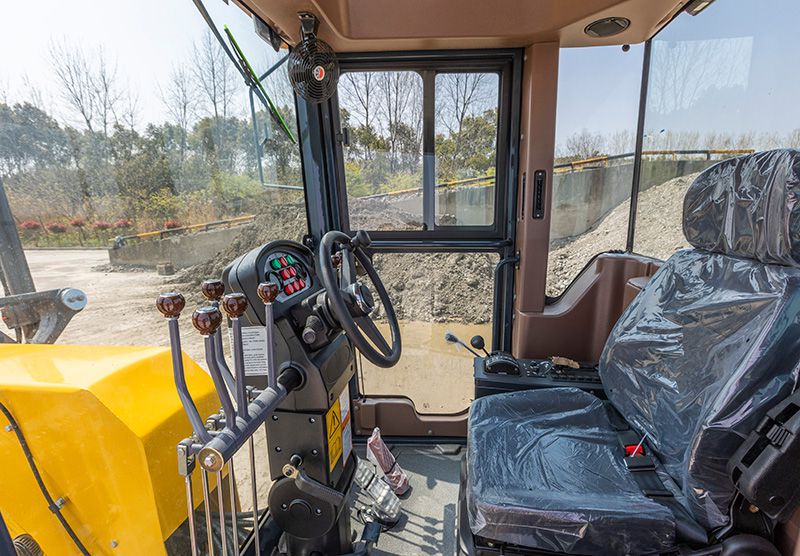

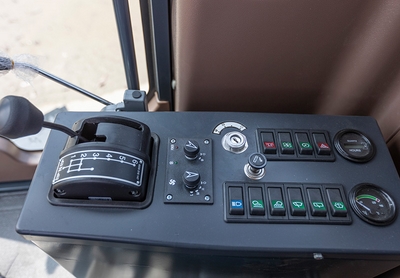

1. Sing-handle electro-hydraulic controlled power-shift T/M, 6 forward&3 reverse shifts makes operation easy and convenient

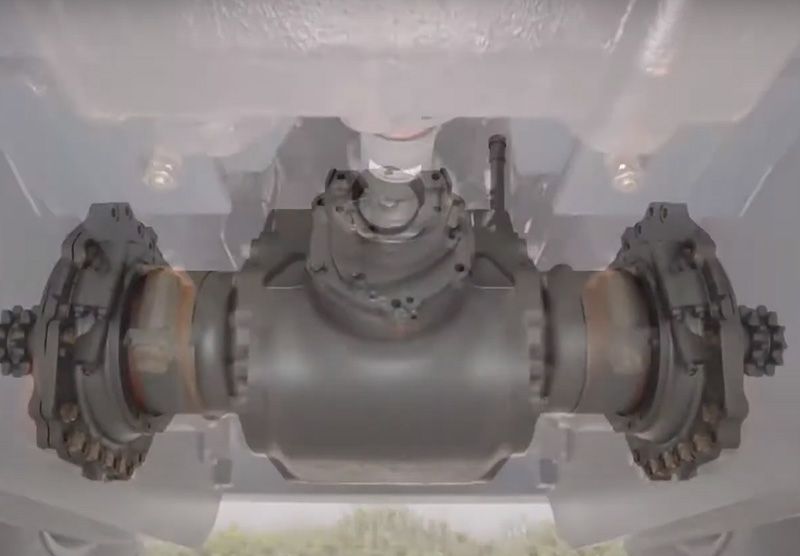

2. Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability

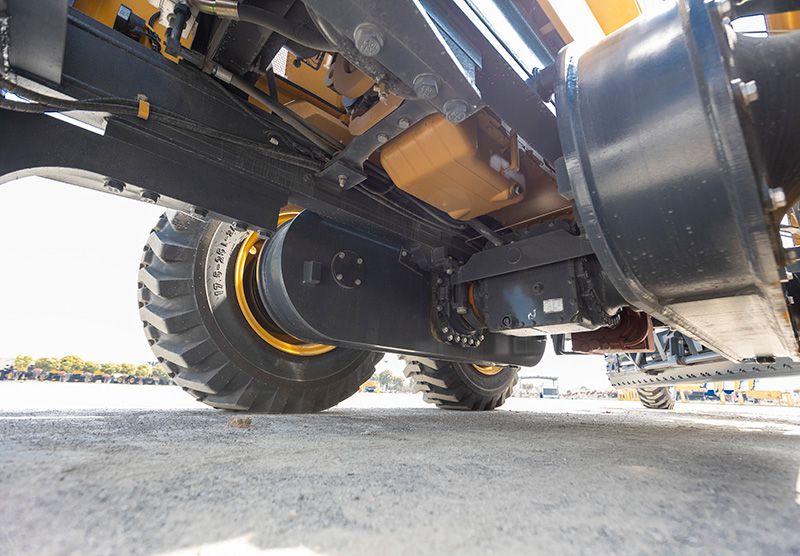

3. Powerful traction deal axle load allocation provides excellent stability while cutting hard surface

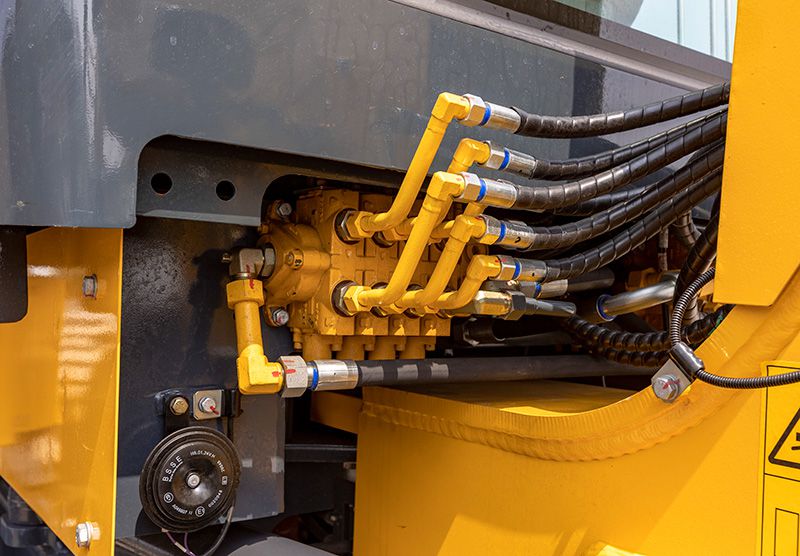

4. Serviceable, efficient hydraulic system enables every part to be fully used
5. Box-typed frame and advanced T/M enable it to complete heavy-duty work

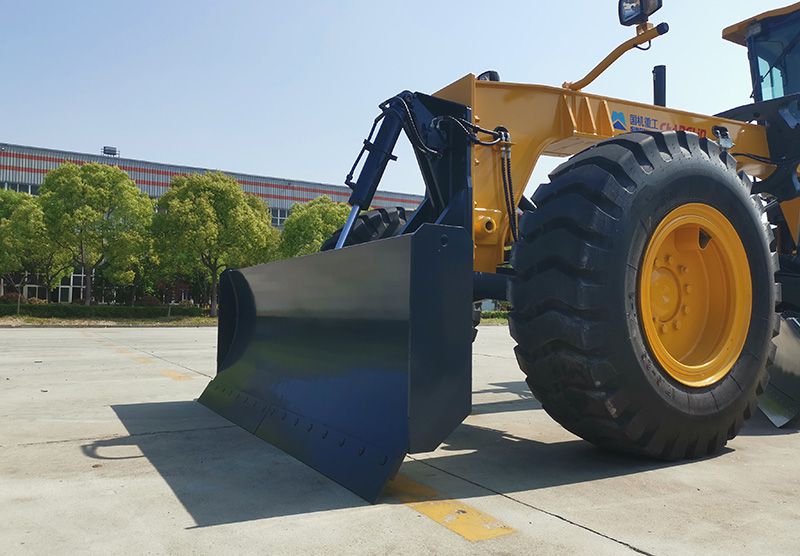

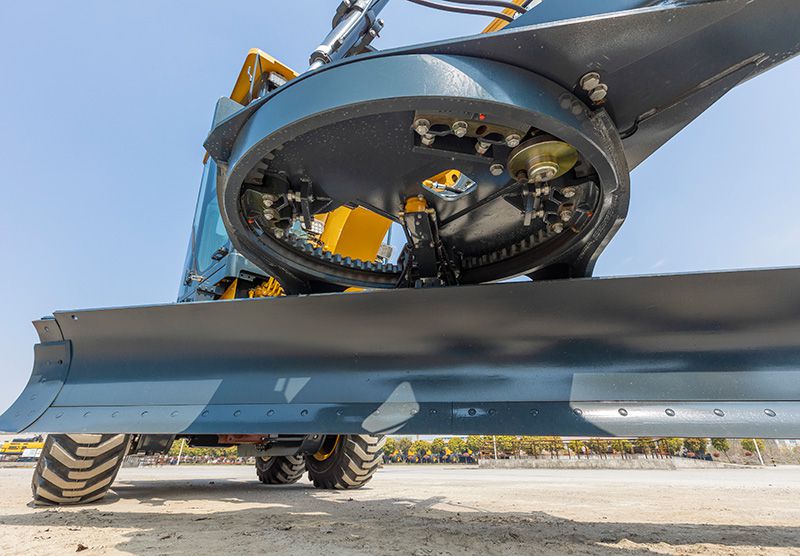

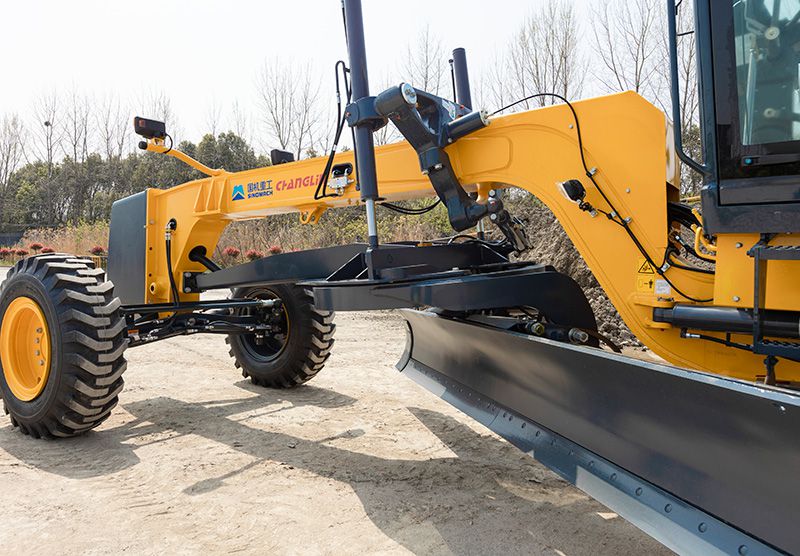

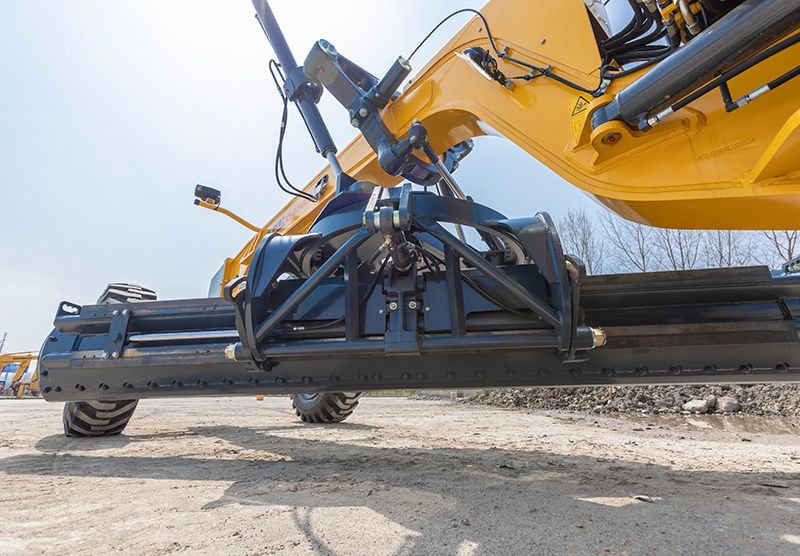

6. A wide working range is accomplished through flexible blade suspension system and articulated frame

Specifications of Motor Grader :
Model 717H
Length×width×height(mm) 8630×3658×3370
Operating weight(Kg) 14500
Max. traction force(KN) 74.6

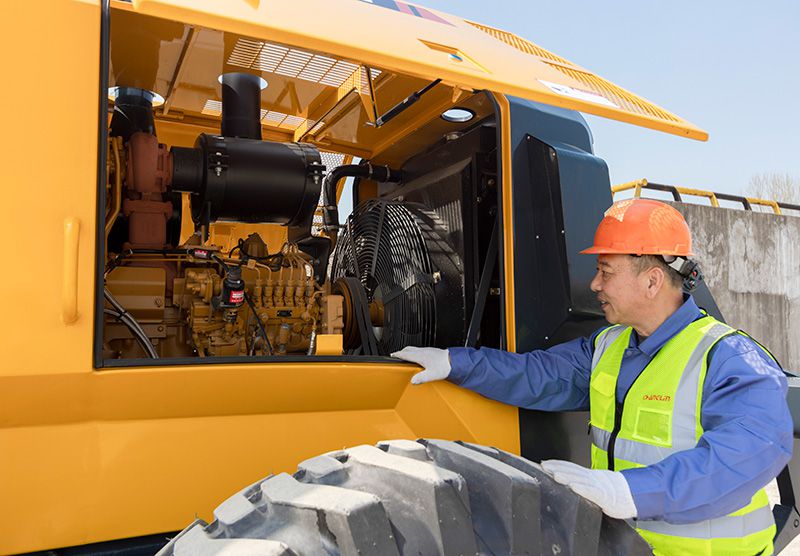

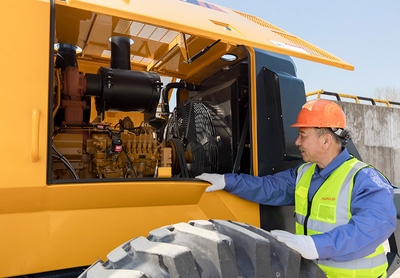

Diesel engine type Dongfeng Cummins6BTA5.9-C180/ShangChai SC8D170G 2B1
Rated output(KW) 132/125
Transmission case type HangChi WG180 /ZF 6WG158
Gear shift position 6 Forward and 3 reverse gears
Min. turning radius(mm) 7300
Blade Dimensions 3658×545×16
Max. lifting height(mm) 450
Max. grading depth(mm) 535
