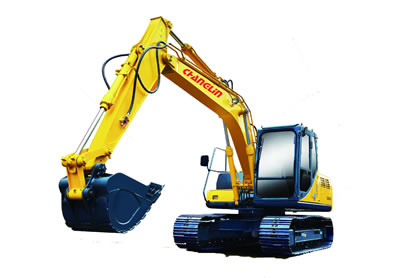

ZG3335LC-9C Excavator

Main Features
1. ZG3335LC-9C excavator manufactured by SINOMACH carries the original Cummins C series engine which provides outstanding durability and suitability for high strength and heavy load works in harsh conditions, combined with strong power, low oil consumption and compliance with Euro II emission qualification.
2. Due to a negative flow and total power control system with action coordination, it ensures large digging force, high efficiency and perfect flexibility.
3. High strength large structural components, heavy moving arm, bucket rod and reinforced bucket enable this construction equipment to bear severe working conditions such as mine.
4. Lengthened and widened chassis boasts high intensity, making working more stable and safer.
5. The excavator is designed with an intelligent electronic monitoring system which provides real time monitoring, automatic fault diagnosis and warning, maintenance reminding functions.
6. New type driver cab is provided with a fully automatic air conditioning. It is spacious and comfortable, and comes with an eye-catching appearance. The cab is available in various protections for different working conditions.
7. Automatic refueling system is optional. One-key operation makes it easy to use.

Technical Parameters of the Excavator
Model ZG3335LC-9C
Length ×Width ×Height (mm) 11140×3280×3280
Operating weight (Kg) 32500
Rated bucket capacity (m3) 1.45
Max. digging depth (mm) 7380
Max. digging radius (mm) 11110
Max. digging height (mm) 10210
Max. digging force (KN) 210
Gradeability (%) 70
Diesel engine Cummins 6CTAA8.3-C250
Rated output (KW) 186
