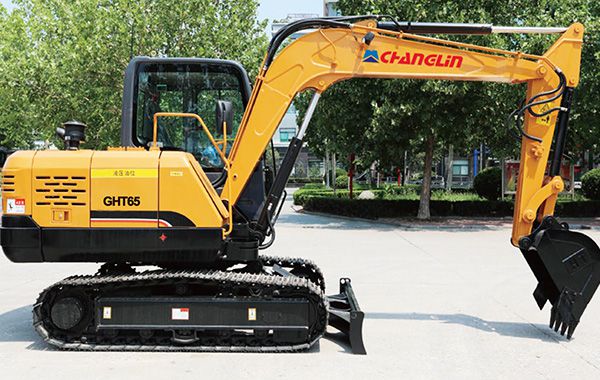

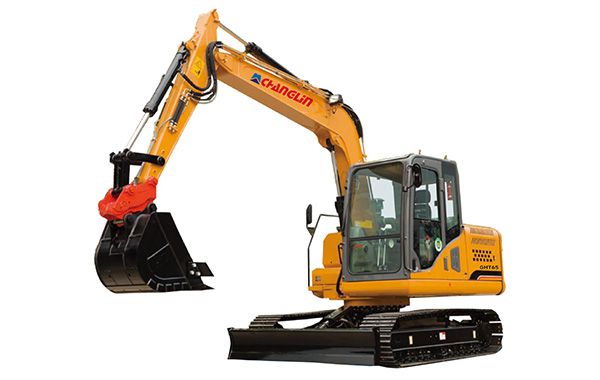

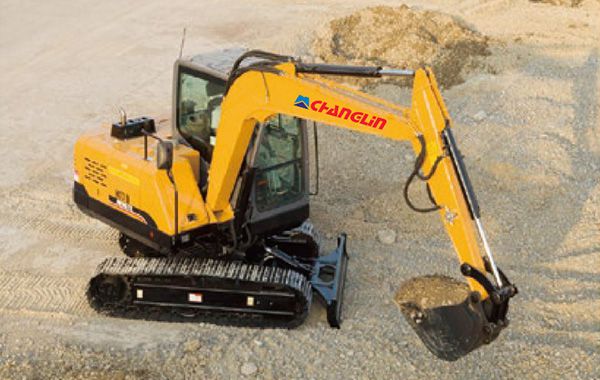

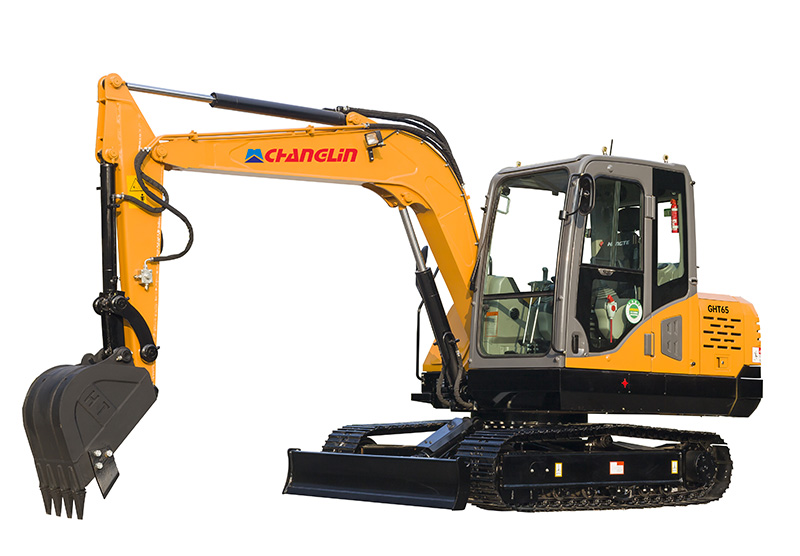

ZG3065-9B Excavator

1. The ZG3065-9B excavator comes with a newly designed hydraulic system, allowing the actuator of the complete machine to offer quick response.
2. Compact structure of hydraulic components allows for reduced tubes and low failure rate, thus providing extremely high reliability and efficiency.
3. The excavator is equipped with a priority valve for highly increased efficiency.

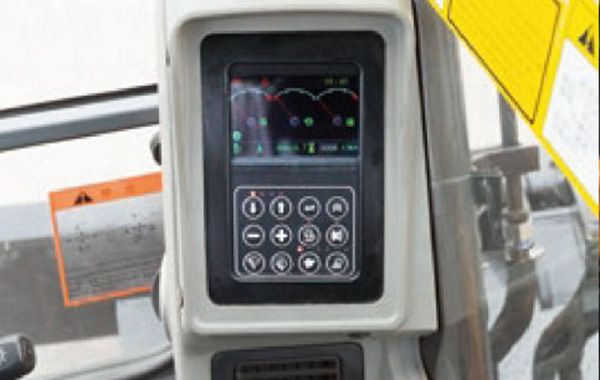

4. Using a real-time intelligent electronic monitoring system enables the excavator to be timely maintained.
5. Fully-opened rear hood provides large space for convenient maintenance.
6. Centralized lubrication system for easy maintenance

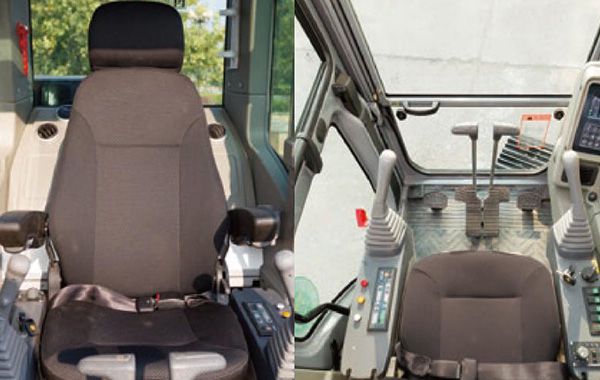

7. Adjustable seat for much comfort
8. Adopting an air-conditioning system offers a more comfortable operating environment.

Specifications of ZG3065-9B Excavator
Product model ZG3065-9B
Length×Width×Height(mm) 5950×1920×2400
Operating weight(Kg) 5800
Rated bucket capacity(m3) 0.22
Max. digging depth(mm) 3820
Max. digging radius(mm) 6150
Max. digging height(mm) 5515
Max. digging force(KN) 40
Gradient capacity (%) 30
Diesel engine type Yanmar 4TNV98-SYU
Rated output(KW) 43.4
