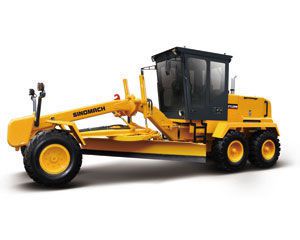

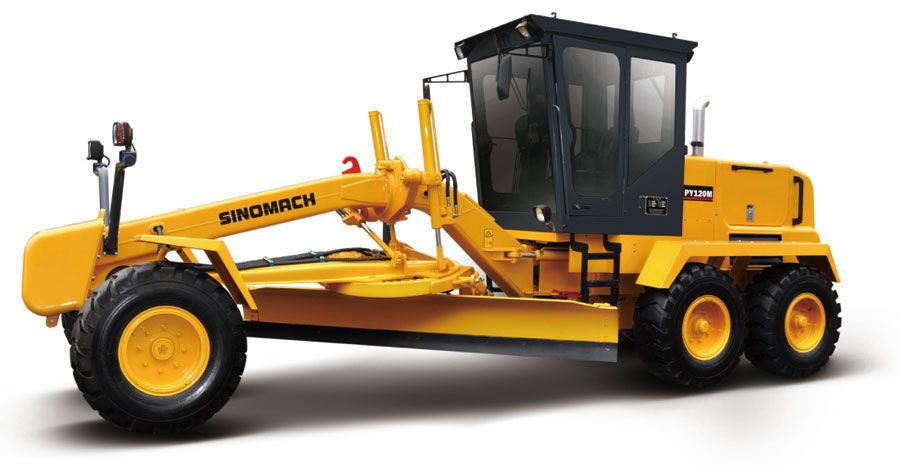

PY120M Motor Grader

PY120M Motor Grader

PY120M
Sinomach motor grader adopts advanced technology from Germany and its output power ranges from 120hps to 350hps.

Motor Grader Specifications
Engine rated power 100kw / 136HP
Engine rated speed 2200rpm
Operating weight Standard 10650kgs
With front bulldozing plate/rear ripper 10900kgs
Overall dimensions
(L*W*H)		 Standard 7800mm×2300mm×3300mm
With front bulldozing plate/rear ripper 9000mm×2400mm×3300mm
Minimum ground clearance 360mm
Minimum outside turning radius 6700mm
Travelling speed Forward 0-44.1km/h
Backward 0-28.3km/h
Gradeability 25%
Max. tractive force 47kN
Blade size 3355mm×570mm
Bulldozing plate (optional) Width*height 2350mm×775mm
Rear ripper (optional) Width 1750mm
Digging depth 275mm

As an experienced motor grader manufacturer based in China, our company provides a wide range of products, including paver, landfill compactor, crawler excavator, wheel loader, and more.
