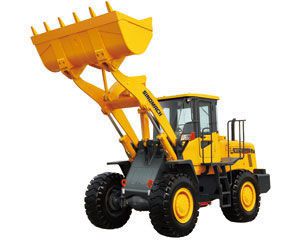

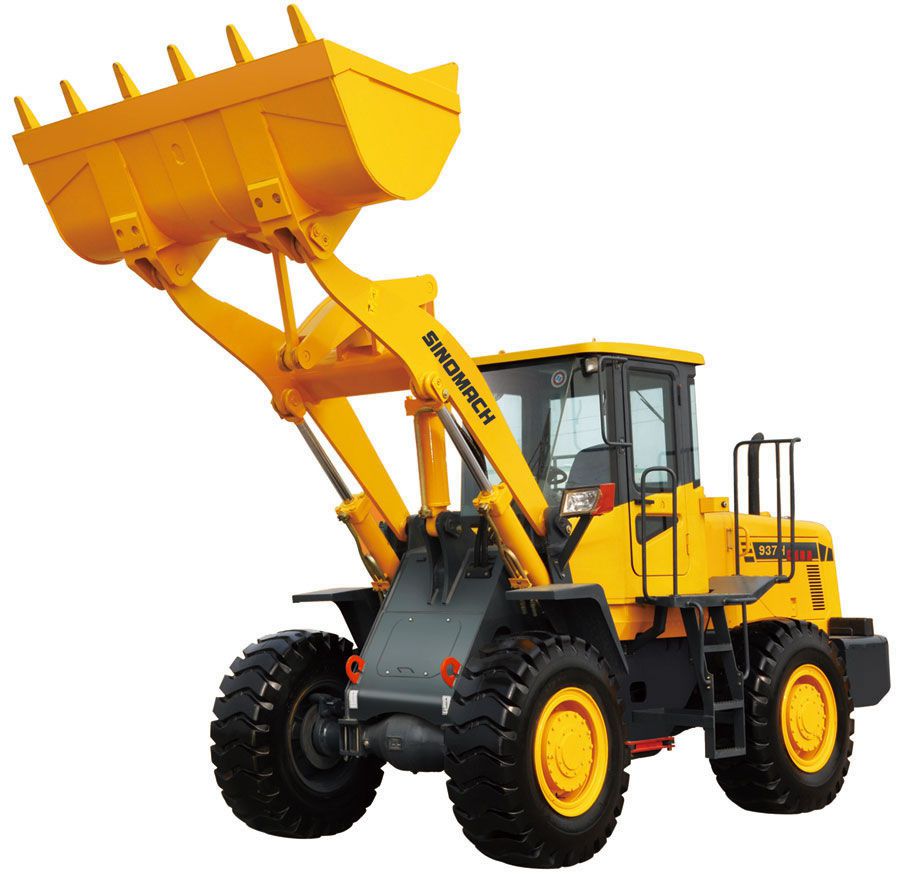

937H Wheel Loader
937H Wheel Loader
Wheel Loader 937H
1. The 937H Wheel Loader is equipped with Dongfeng Cummins Engine.
2. This Wheel loader adopts 3 forward and 3 reverse power shift transmission.
3. The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.
| Overall Dimension | ||
| 1 | Length (with bucket on ground) | 7425mm |
| 2 | Width (to the outside of wheels) | 2305mm |
| 3 | Bucket width | 2462mm |
| 4 | Height (to the top of the cab) | 3095mm |
| 5 | Wheel base | 2750mm |
| 6 | Tread | 1855mm |
| 7 | Min. ground clearance | 370mm |
| Main Technical Specification | ||
| 1 | Rated load | 3000Kg |
| 2 | Operating weight | 10200KG |
| 3 | Rated bucket capacity | 1.7m3 |
| 4 | Max. breakout force | 96kN |
| 5 | Max. dump clearance | 2850mm |
| 6 | Dump reach | 1030mm |
| 7 | Dump angle at any position | ≥45° |
| 8 | Min. turning radius | |
| (1) Outside of bucket | 5600mm | |
| (2) Outside of rear wheel | 5205mm | |
| 9 | Pivot angle frame | 38+1° |
| 10 | Oscillating angle of rear axle | +11° |
| 11 | Lifting time of bucket | ≤5.1sec. |
| 12 | Lowering time of bucket | ≤3.0sec. |
| 13 | Dumping time | ≤1.1sec. |
| 14 | Traveling speed, 3 forward and 3 reverse | |
| (1) 1st gear forward | 7.3Km/h | |
| (2) 2nd gear forward | 15.7Km/h | |
| (3) 3rd gear forward | 35Km/h | |
| (1) 1st gear reverse | 7.8Km/h | |
| (2) 2nd gear reverse | 16.8Km/h | |
| (3) 3rd gear reverse | 36Km/h | |
| Diesel Engine | ||
| 1 | Model | Dongfeng Cummins 6BT5.9-C120 |
| 2 | Type | Direct injection. Turbocharged. Water cooling |
| 3 | Rated output | 87KW |
| 4 | Inter-bore of cylinder / stroke | 102/120 mm |
| 5 | Total exhaust of cylinder | 5.9L |
| 6 | Voltage of starting motor | 24V |
| 7 | Rated speed | 2200r/min |
| 8 | Max. torque | 440(N.M)/1500rpm |
| 9 | Starting mode | Electric |
| 10 | Min. specific fuel consumption | 220g/Kw.h |
| Transmission System | ||
| 1. Torque Converter | ||
| 1 | Model | YJH315F (Shanxi Aerospace Power) |
| 2 | Type | 3-elements. Single stage |
| 3 | Torque ratio | 3.1 |
| 4 | Cooling type | Pressure oil circulating |
| 2. Transmission Case | ||
| 1 | Model | Chinese Sinomach |
| 2 | Type | Power shift, constant-mesh spur gear |
| 3 | Gear shift position | 3 forward and 3 reverse gears |
| 3. Axle and Tire | ||
| 1 | Type of main reducer | Spiral bevel gear, single stage |
| 2 | Gear ratio of main reducer | 3.889 |
| 3 | Type of final reducer | Single stage planetary |
| 4 | Gear ratio of final reducer | 4.941 |
| 5 | Total ratios | 19.216 |
| 6 | Max. drawing force | 83kN |
| 7 | Size of tire | 17.5-25-12PR |
| Working Device Hydraulic System | ||
| 1 | Model of oil pump | CBGj2100 (SAE) |
| 2 | System pressure | 160kgf/cm2 |
| 3 | Model of multichannel conversion valve | GDF32D2 |
| 4 | (D×L) Dimension of lifting cylinder | Ф125×70×697mm |
| 5 | (D×L) Dimension of tilt cylinder | Ф150×70×470mm |
| Steering System | ||
| 1 | Type | Middle articulated frame. Full-Hydraulic steering |
| 2 | Model of steering pump | CBG2050 (SAE) |
| 3 | Model of steering gear | BZZ1-E400C+FKA-143020 |
| 4 | Model of single-channel stable shunt valve | FLD-D30H |
| 5 | System pressure | 14MPa |
| 6 | Dimension of steering cylinder | Ф70×40×357mm |
| Brake System | ||
| 1 | Type of traveling brake | Air assisted oil.4 wheel brake |
| 2 | Air pressure | 7-8kgf/cm2 |
| 3 | Type of emergency brake | Automatic cutting air brake |
| 4 | Type of parking brake | Drum brake Manual control cutting off air brake |
| Oil Capacity | ||
| 1 | Fuel (diesel) | 110L |
| 2 | Engine lubricating oil | 13.5L |
| 3 | Oil for converter and gear box | 35L |
| 4 | Oil for hydraulic system | 120L |
| 5 | Oil for driving axles (F/R) | 16/15L |
As a China wheel loader manufacturer, our company also supplies crawler excavator, hydraulic vibratory single drum road roller, skid steer loader, road paver, and much more.
