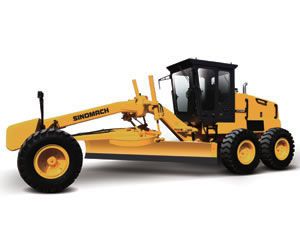

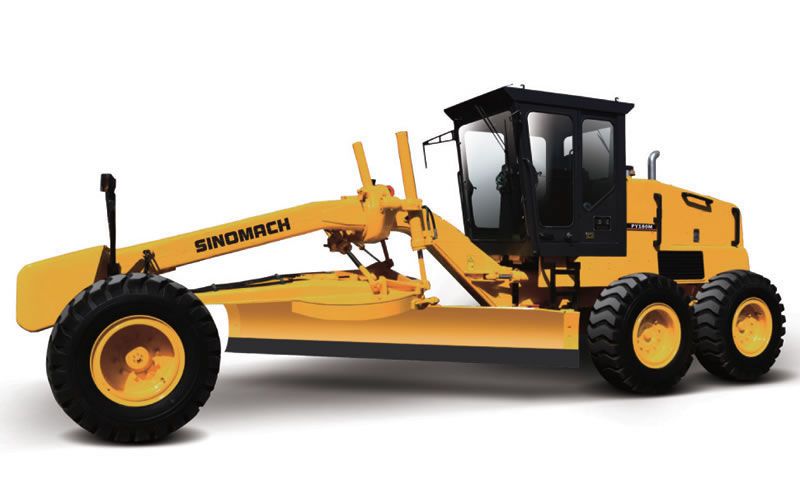

GP180M Motor Grader

GP180M Motor Grader

GP180M
Sinomach motor grader adopts advanced technology from Germany and its output power ranges from 120hps to 350hps.

Motor Grader Specifications
Engine rated power 160kw/215HP
Engine rated speed 2300rpm
Operating weight Standard 15400kgs
With front bulldozing plate/rear ripper 15400kgs
Overall dimensions
(L*W*H)		 Standard 8800mm×2600mm×3400mm
With front bulldozing plate/rear ripper 9900mm ×2740mm ×3400mm
Minimum ground clearance 430mm
Minimum outside turning radius 7500mm
Travelling speed Forward 0-36km/h
Backward 0-25km/h
Gradeability 25%
Max. tractive force (Ø=0.75) 82kN
Blade size 3965mm ×650mm
Bulldozing plate (optional) Width*height 2740mm ×920mm
Rear ripper (optional) Width 2000mm
Digging depth 315mm
Number of teeth 5

SINOMACH is a China-based motor grader manufacturer and supplier. We also offer hydraulic double drum vibrating road roller, crawler excavator, truck crane, wheel loader, among others.
