957H Wheel Loader
957H Wheel Loader
957H Wheel Loader

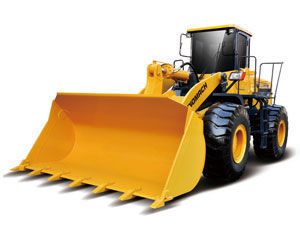

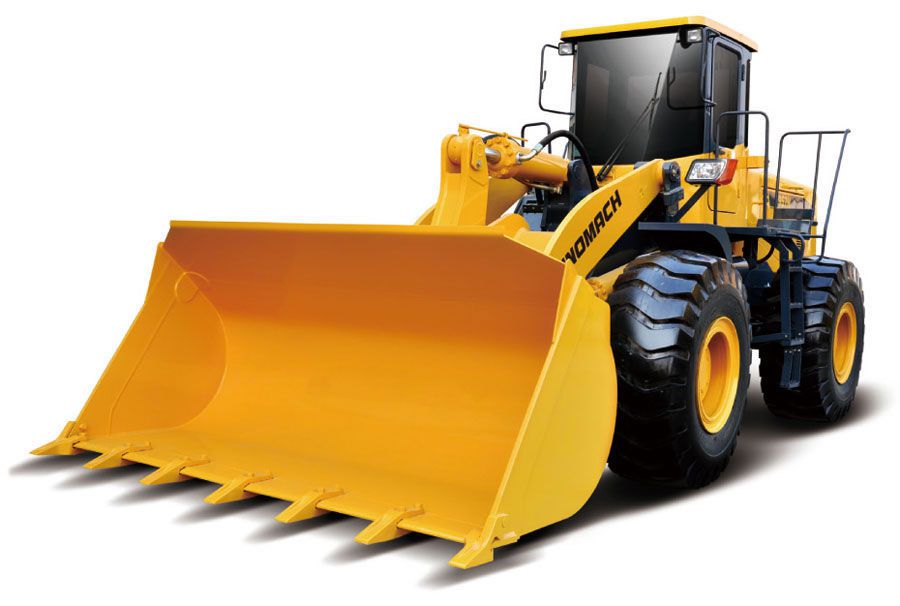

1. The 957H Wheel Loader is equipped with reliable ShangChai SC11CB220G2B1 engine.
2. This Wheel loader adopts 3 forward and 3 reverse power shift transmission.
3. The combined seal cylinder adopted by this wheel loader obtains high seal performance and more reliability.
| Overall Dimension | ||
| 1 | Length (with bucket on ground) | 8130mm |
| 2 | Width (to the outside of wheels) | 2800mm |
| 3 | Bucket width | 2946mm |
| 4 | Height (to the top of the cab) | 3450mm |
| 5 | Wheel base | 3200mm |
| 6 | Tread | 2200mm |
| 7 | Min. ground clearance | 450mm |
| Main Technical Specification | ||
| 1 | Rated load | 5000Kg |
| 2 | Operating weight | 16700Kg |
| 3 | Rated bucket capacity | 3.0m3 |
| 4 | Max. breakout force | 160kN |
| 5 | Max. traction force | 150kN |
| 6 | Max. dump clearance | 3100mm |
| 7 | Dump reach | 1150mm |
| 8 | Dump angle at any position | ≥450 |
| 9 | Digging depth (with bucket bottom horizontal) | 165mm |
| 10 | Min. turning radius | |
| (1) Outside of bucket | 6735mm | |
| (2) Outside of front wheel | 6098mm | |
| 11 | Pivot angle frame | 38° |
| 12 | Oscillating angle of rear axle | +13° |
| 13 | Lifting time of bucket | ≤5.6sec. |
| 14 | Lowering time of bucket | ≤3.7sec. |
| 15 | Dumping time | ≤1.7sec. |
| 16 | Traveling speed (Km/h), 3 forward and 3 reverse | |
| (1) 1st gear | 7.05/9.0 | |
| (2) 2nd gear | 11.7/16.0 | |
| (3) 3rd gear | 34.6/38.24 | |
| Diesel Engine | ||
| 1 | Model | ShangChai SC11CB220G2B1 Engine |
| 2 | Type | Direct injection. Turbocharged. Water cooling |
| 3 | Rated output | 162Kw |
| 4 | Inter-bore of cylinder / stroke | 121/152mm |
| 5 | Total exhaust of cylinder | 10.5L |
| 6 | Model of starting motor | KB-24V |
| 7 | Power of starting motor | 7.5KW |
| 8 | Voltage of starting motor | 24V |
| 9 | Rated speed | 2200r/min. |
| 10 | Max. torque | 843±6%(N.m)/(1400r/min) |
| 11 | Starting mode | Electric |
| 12 | Min. specific fuel consumption | 230g/Kw.h |
| 13 | Specific oil consumption of engine | 0.95-1.77g/Kw.h |
| 14 | Net weight | 960Kg |
| Transmission System | ||
| 1. Torque Converter | ||
| 1 | Model | 957H.2 |
| 2 | Type | 3-elements. Single stage |
| 3 | Torque ratio | 3.35 |
| 4 | Cooling type | Pressure oil circulating |
| 2. Transmission Case | ||
| 1 | Model | Sinomach 957H.4 |
| 2 | Type | Power shift, constant- mesh spur gear |
| 3 | Gear shift position | 3 forward and 3 reverse gears |
| 3. Axle and Tire | ||
| 1 | Type of main reducer | Spiral bevel gear, single stage |
| 2 | Gear ratio of main reducer | 4.625 |
| 3 | Type of final reduce | Single stage planetary |
| 4 | Gear ratio of final reducer | 4.9286 |
| 5 | Gear ratio | 22.795 |
| 6 | Max. drawing force | 150kN |
| 7 | Size of tire | 23.5-25-16PR |
| Working Device Hydraulic System | ||
| 1 | Model of oil pump | JHP 3160 |
| 2 | System pressure | 180kgf/cm2 |
| 3 | Model of multi-way directional valve | 7130-B97 HUSCO |
| 4 | Pilot supply valve | DGf-00 (Gaoyu) |
| 5 | Pilot valve | 406-1044-1145 HUSCO |
| 6 | (D×L) Dimension of lifting cylinder | Ф160×90×810mm |
| 7 | (D×L) Dimension of tilt cylinder | Ф180×90×528mm |
| Steering System | ||
| 1 | Type | Middle articulated frame. Full-Hydraulic steering |
| 2 | Model of steering pump | JHP2080S |
| 3 | Model of redirector | TLF1-E1000B+FKB6020 |
| 4 | Model of priority valve | YXL-F250F-N7 |
| 5 | System pressure | 16MPa |
| 6 | Dimension of steering cylinder | Ф90×45×435mm |
| Brake System | ||
| 1 | Type of traveling brake | Caliper disc brake Dual pipelines, air over oil activate 4 wheel brake |
| 2 | Air pressure | 7-8kgf/cm2 |
| 3 | Type of emergency brake | Manual control cutting-off air brake |
| 4 | Type of parking brake | Inner expand hoof Automatic boosting. inner expand hoof |
| Oil Capacity | ||
| 1 | Fuel(diesel) | 250L |
| 2 | Engine lubricating oil | Cummins: 20L ShangChai: 42L |
| 3 | Oil for converter and gear box | 42L |
| 4 | Oil for hydraulic system | 180L |
| 5 | Oil for driving axles (F/R) | 20/20L |
