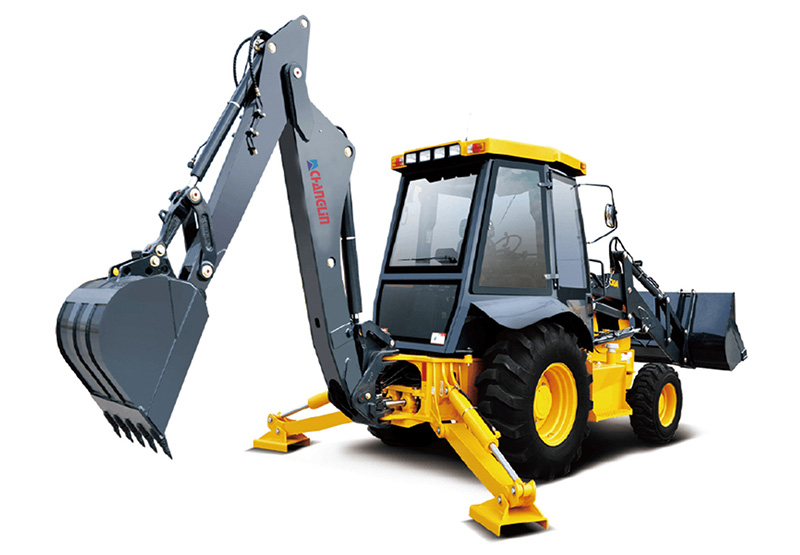

Backhoe Loader WZ30-25

Inquiry

Video

Utilizing Cummins 4BTA3.9-C110 engine or Weichai engine, delivering high digging force, superior performance, excellent energy-saving efﬁciency, low maintenance cost, outstanding reliability and durability.
Hydraulic system includes high quality hydraulic components from world's renowned brands to ensure reliable operation, and the additional hydraulic circuit allows to cope with the digging and loading works.
Maintenance-free wet brake system has dual brake pedals, which ensure smooth braking in limited spaces and tight corners.
The backhoe loader has eight-bar-linkage design to improve loading performance with powerful bucket breakout force and high work stability. More importantly, the automatic bucket leveling system helps operator maintain high work efficiency.
More backhoe loader attachments are available for customers to choose from.
FOPS/ROPS certified spacious cab provides excellent operator visibility.

Specifications

Dimension	Model	WZ30-25
	Length (with bucket on ground) (mm)	7085
	Width (mm)	2313
	Load Bucket width (mm)	2313
	Height (To the top of the cab) (mm)	2710
	Height (To the top of the digging pole) (mm)	3424
	Wheelbase (mm)	2155.5
	Min. ground clearance (mm)	275
Loading Performance	Rated load (Kg)	1700
	Operating weight	7600
	Rated Digging Bucket Capacity (m3)	1.0
	Max. dump clearance (mm)	2714
	Dump reach (mm)	845
	Max lifting capability (Kg)	3400
	Max. load breakout force (kN)	>60
Digging Performance	Rated digging bucket capacity (m3)	0.3
	Max. digging depth (mm)	4405
	Max. digging radius (mm)	5481
	Max. dumping height (mm)	3737
	Max. digging force (kN)	>50+10％
Engine	Model	WD DEUTZ WP4G95E221 /Cummins 4BTA3.9-C110
	Type	Direct injection, turbocharged, water cooling
	Rated output	70 (kW)@2200rpm /82 (kW)@2200rpm
	Displacement	4.5(L) /3.9(L)
Travelling performance	Gears	F4R4
	Speed (F/R)	6/6, 9.6/9.6, 20.5/20.5, 38/38
	Max. drawing force	70kN

Features

Weichai or Cummins engine is adopted to deliver high digging force, superior performance, excellent energy-saving efﬁciency, low maintenance cost, outstanding reliability and durability.
Hydraulic system includes high quality hydraulic components from world's renowned brands to ensure reliable operation, and the additional hydraulic circuit allows to cope with the digging and loading works.
Maintenance-free wet brake system has dual brake pedals, which ensure smooth braking in limited spaces and tight corners.
The backhoe loader has eight-bar-linkage design to improve loading performance with powerful bucket breakout force and high work stability. More importantly, the automatic bucket leveling system helps operator maintain high work efficiency.
FOPS/ROPS certified spacious cab provides excellent operator visibility.

More backhoe loader attachments are available for customers to choose from.
