Backhoe Loader 620CH

Features

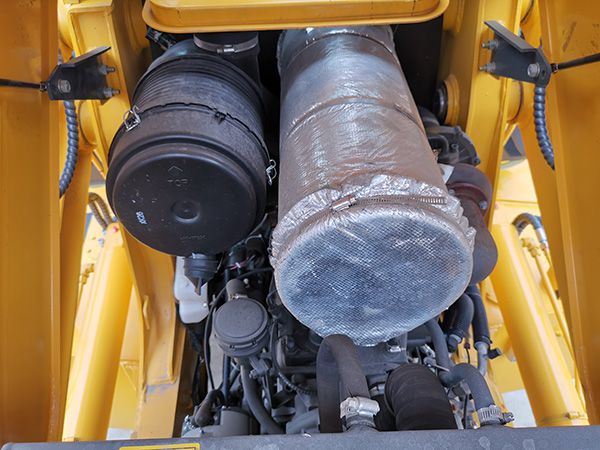

1. The backhoe loader 620CH is installed with Cummins engine from Dongfeng.
2. It has four 4 forward and 4 reverse synchromesh mechanical shift transmissions.

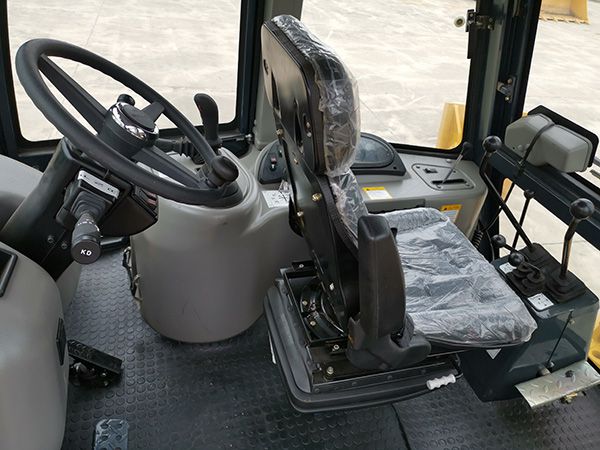

3. For high safety, the ROPS/FOPS cab is designed with wide space to create comfortable driving environment and good visibility.

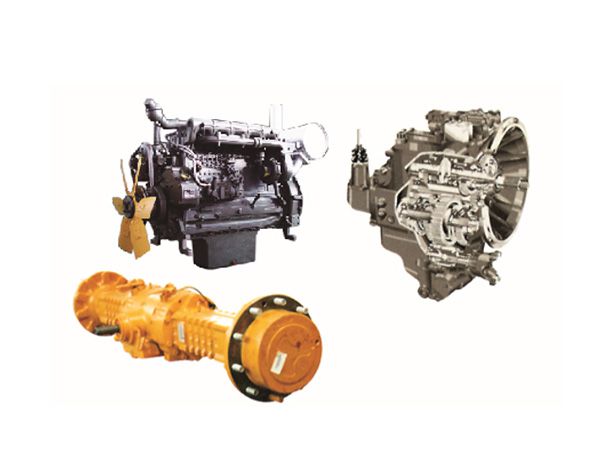

4. This product can be manufactured with 4 wheel drive for option. The construction machinery uses CARRARO front axle and CARRARO wet-type rear axle with multi-disc brake.

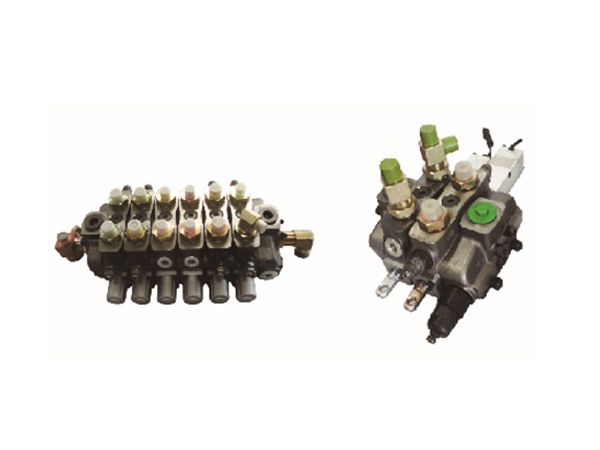

5. The pilot valve controlled loader, as well as the backhoe valve, makes for easy and flexible operation of the backhoe loader.
6. Smartly designed, the extendible dipper for the excavator greatly reduces the travelling distance and improves the working efficiency.
7. The arm of the wheel loader can be extended to increase the working range.

Specifications
Model 620CH
Length×width×height(mm) 5835×2313×3548
Operating weight(Kg) 8000
Diesel engine type DongFeng Cummins 4BTA3.9-C110 /Cummins B4.5 /Perkins 1104D
Rated output(KW) 82/74/74.5
Transmission case type CARRARO
Gear shift position 4 Forward and 4 reverse gears
Max. traction force(KN) 70
Rated load(Kg) 1700
Rated load bucket capacity(m3) 1.0
Max. breakout force(KN) 60
Max. dump clearance(mm) 2714
Dump reach(mm) 845
Wheel base(mm) 2155.5
Total time of elevating, loading and unloading 9.5
Rated digging bucket capacity(m3) 0.2
Max. digging depth(mm) 4405
Max. digging radius(mm) 5390
Max. dumping height(mm) 3510
Max. digging force(KN) 56
