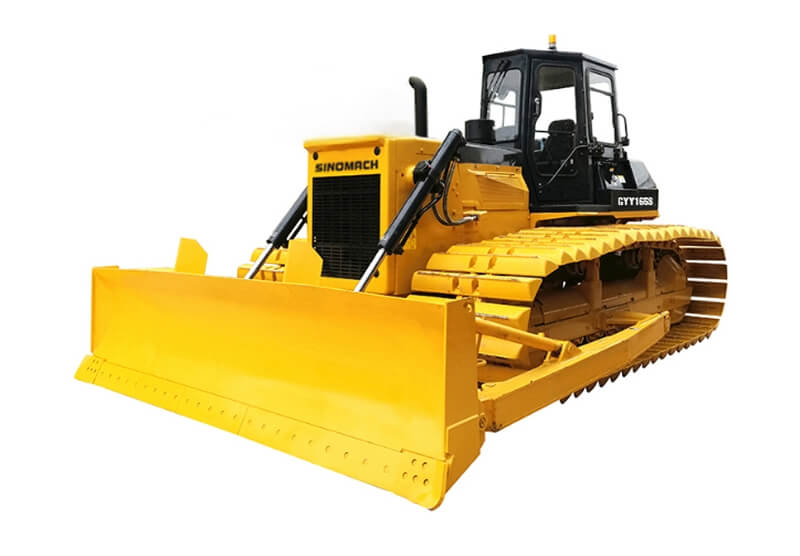

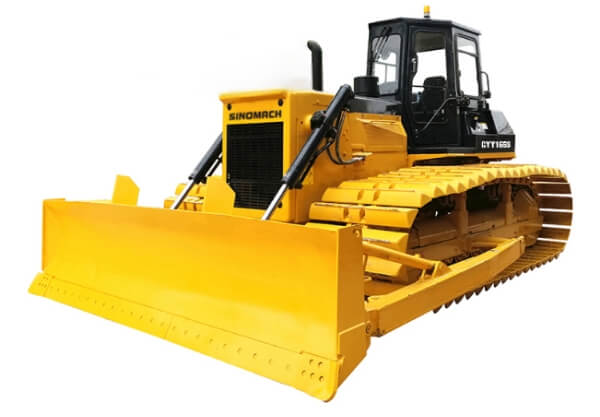

Bulldozer GTY165(S)

  • Operating Weight 10400Kg
  • Rated Power 81kW
Inquiry
Bulldozer GTY165(S)
Specifications
Model GT100G-3 GT100S-3
Length×Width×Height (mm) 4190×2935×3020 4190×3240×3060
Operating weight (kg) 10400 11360
Diesel engine YTO LR6A3-23
Rated output power (kW) 81
Track width (mm) 450 600
Blade dimensions Length×Height (mm) 2935×960 3240×878

Besides the GT100G-3/GT100S-3 bulldozer, SINOMACH have many other kinds of heavy construction and engineering equipment for sale.

Features
  • Engine: Choose the engine produced with British Ricardo joint-venture technology, which conforms to National II emission standard, and features low noise, large torque, energy efficient and environmental friendliness.
  • Main clutch: Choose dry, multi-disk and constant combining clutch which features big torque reserve and high reliability.
  • Gearbox: Choose 4F+2R mechanical gear-shifting gearbox, simply operating, conveniently maintaining, reliably using.
  • Steering clutch: Choose dry and multi-disk turning clutch, manually operating with hydraulically-assisted, easily maintaining, lightly and conveniently operating.
  • Transmission: Choose two stages, straight teeth, big modulus gear transmission, stronger carrying capacity, and higher reliability.
  • Cab: Adopt the luxury cab, overhead air-conditioning system, comfortable operating space.
  • Optional work device: Straight-tilt shovel, angle shovel, coal shovel and so on.

SINOMACH as a reliable heavy equipment company in China, is making construction equipment for road construction and foundation engineering with 6 decades of experience, SINOMACH has been a high quality heavy equipment maker in China and provide construction equipment and engineering vehicle with resonable prices.
