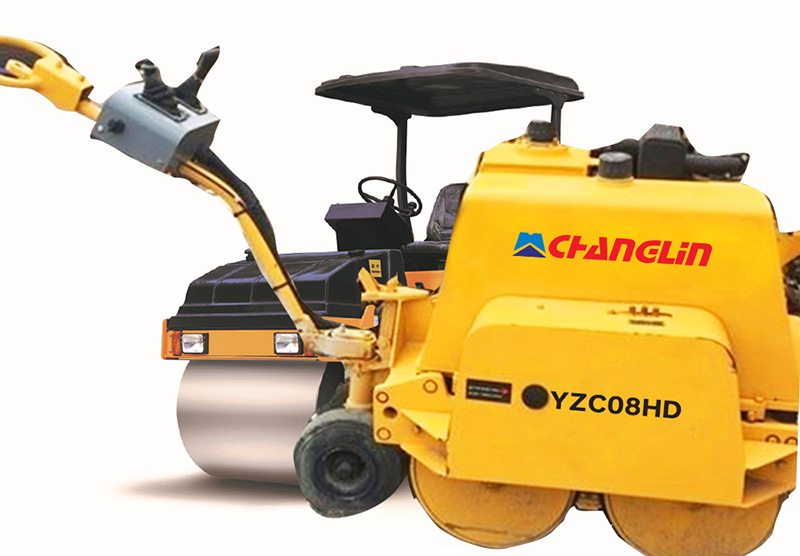

Hydraulic Vibratory Road Roller YZC08HD

YZC08HD hydraulic vibratory road roller is a walk-behind vibratory roller mainly used in municipal road construction and highway maintenance projects. This construction machine is also suitable for rolling works of narrow road surfaces, building of foundations with grooves wider than 0.8m, and backfilling operations.

  • Rated output: 5.68kW
  • Centrifugal force: 12KN
  • Operating weight: 800KG
Inquiry
Hydraulic Vibratory Road Roller YZC08HD
  • Vertical air-cooled direct injection diesel engine (CF186F), with rated power of 5.68kW;
  • Hydraulic all wheel drive ensures strong gradeability, both electrical and manual start-up devices are available;
  • The hydraulic vibratory road roller is designed with guide wheel and joystick, offering easy control and reduced labor intensity;
  • Adopting America DANFOSS driving pump & Eaton driving motor;
  • The compact structure allows for compacting in narrow ground while giving a superior appearance;
  • Stepless speed adjustment of 0-4km/h;
Specifications
Model YZC08HD
Operating weight (kg) 800
Vibratory drum diameter (mm) 400
Compaction width (mm) 600
Static line pressure (N/cm) 62/62
Min. ground clearance (mm)
Wheelbase (mm) 470
Min. turning radius (mm) 2700
Gradeability 40%
Vibratory amplitude (mm) 0.25
Vibratory frequency (Hz) 48
Centrifugal force (kN) 12
Forward (km/h) 0-4
Reverse (km/h) 0-4
Tire model /
Engine model CF186F
Rated power 5.68kW
Dimension (mm) 2400×880×1100
