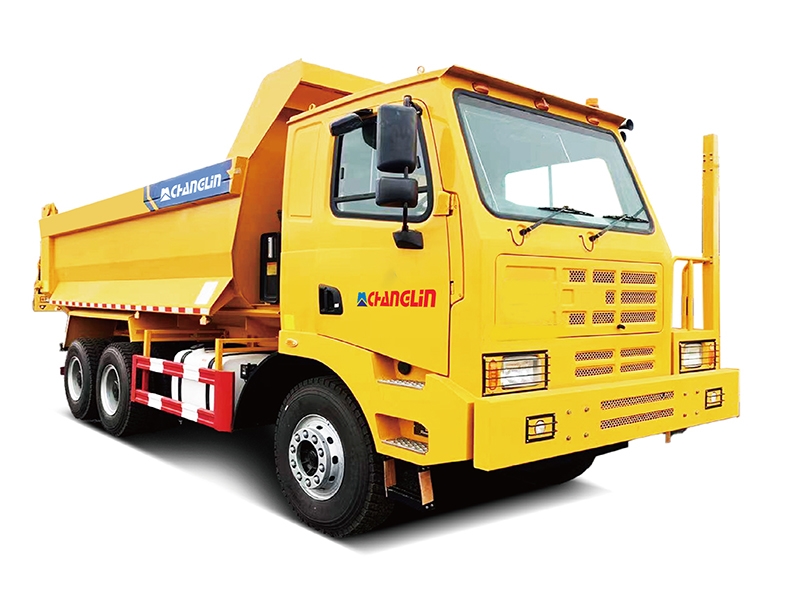

Mining Truck GKM45P

  • Rated output 340HP
  • Loading capacity 19m³
Inquiry
Mining Truck GKM45P
ECONOMIC
  • Optimal matching of engine and gearbox achieves the best fuel consumption under the premise of power;
  • The box is a patented lightweight box with lighter weight and lower center of gravity to improve exercise stability and fuel economy;
  • Different vehicle-axle speed ratio can be selected according to mine to improve transportation efficiency and reduce fuel consumption rate.
COMFORTABLE
  • Semi-floating unilateral cab, oil and gas spring adjustable seats, flat head design to broaden the vision;
  • The patented non-independent oil-gas suspension overcomes the problems of high failure rate and poor comfort of plate spring structure;
  • The wraparound instrument panel of bus structure and adjustable steering wheel bring more convenient operation;
EFFICIENT
  • Compact chassis, compared with the same volume of the mine car, the wheelbase and frame length is shorter, greatly reducing the turning radius of the vehicle, improving the vehicle handling and mobility;
  • The mining truck is equipped with centralized lubrication system, which can reduce the time of vehicle parking and maintenance, and the vehicle attendance rate is above 85%;
  • Compared with ordinary heavy truck, the loading mass is larger, and the density of vehicles in mining area is reduced; Compared with the classical mining car, the width and turning radius are smaller, and the road maintenance cost is reduced in the mining area.
Specifications
Model Model GKM45P
Length×Width×Height(m) 8750*2560*3450
Kerb weight (Kg) 15000
Rated total weight (Kg) 45000
Diesel engine WeiChai 340
Rated output(KW) 340HP
Drive type 6×4
Loading capacity(m3) 19
Max. gradeability(%) 30
Min. turning radius(m) 8
