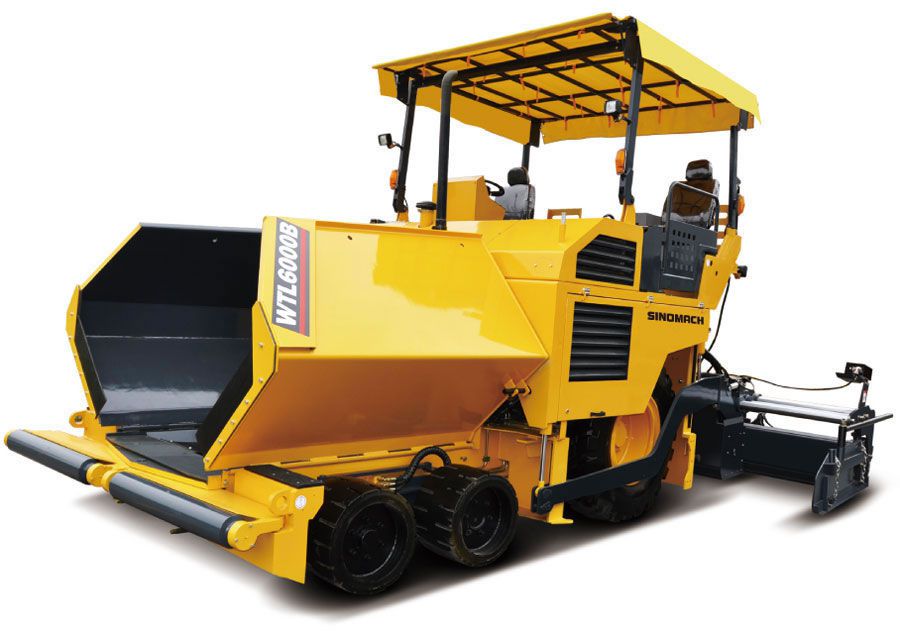

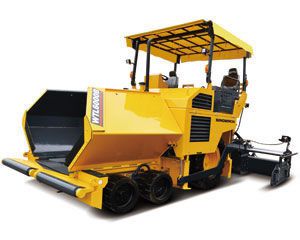

WTL6000B Paver Finisher

WTL6000B Paver Finisher

WTL6000B Paver with Hydraulic Telescopic Mangle Specifications
Items Unit Parameters
Paving width Standard mm 2500
Paving width Max. mm 6000
Paving thickness Minimum mm 20
Paving thickness Max. mm 150
Travel speed Ⅰshift m/min 1~10
Ⅱshift km/h 0~10
Paving evenness mm/3m ±15
Stabilized base camber % ±3
Stabilized base compactness % >75
Hopper capacity t 12
Gradient ability Paving ° 6
Transport ° 10
Dimension Total length mm 6290
Total width mm 2690
Total height mm 2820
Weight t 15
Spiral conveyor Diameter mm 360
Thread pitch mm 280
Engine model Dongfeng　Cummins 4BTA3.9-C125
Engine power kW 93
Revs r/min 2200
Scraper feeder speed m/min 13
Spiral feeder speed r/min 0-16
Vibrating motor Mpa 16
Vibrating revs r/min 0-3500

Our company is a professional paver finisher manufacturer in China. We provide a comprehensive range of products including landfill compactor, motor grader, crawler bulldozer, backhoe loader, and more.
